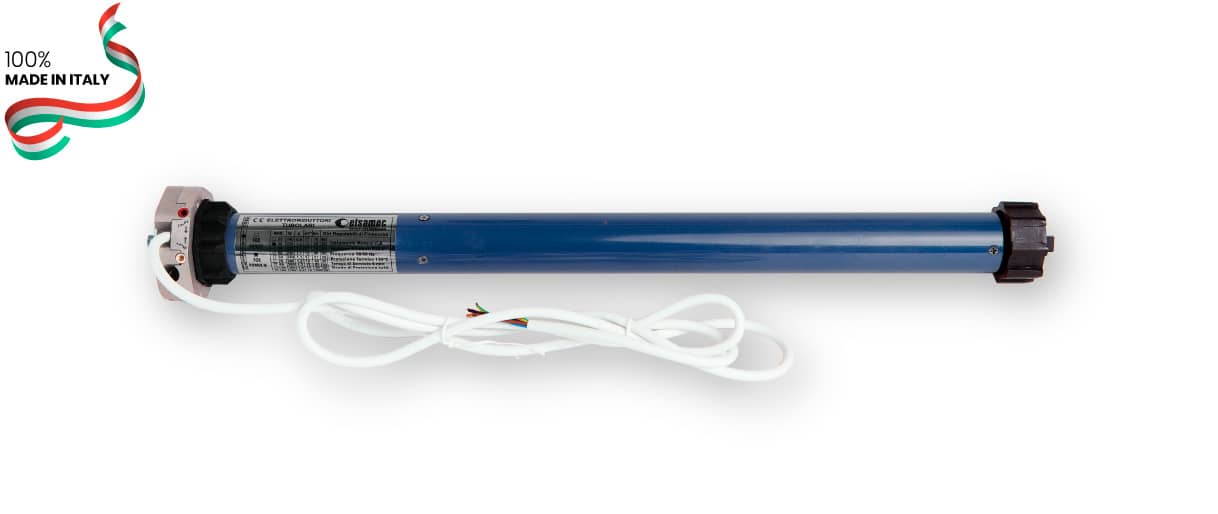

The limit-switch system of the series Rabbit is very easy to set: the regulation, immediate and progressive, make it the motor for every shutter and awning.

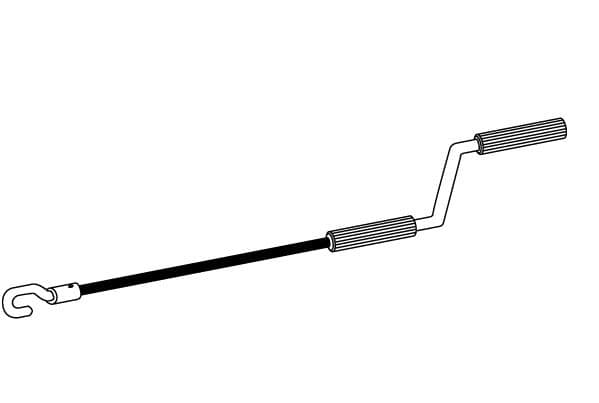

The -M models are prepared for manual emergency manoeuvring in case of a power failure.
easy, precise and progressive adjustment
torque 30 and 50 Nm

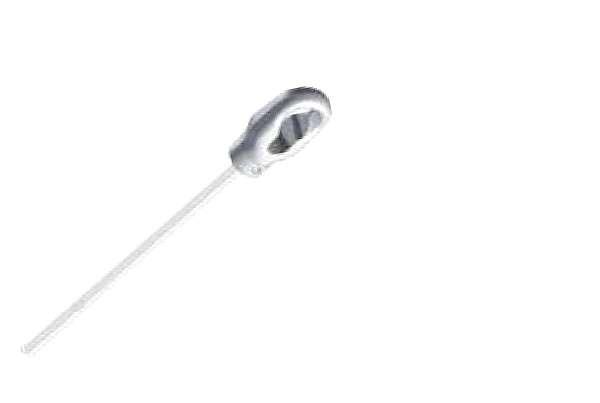

with hand override
mechanical limit switch
zama reducer pin
Ø motor tube
power (W)
amperage (A)
45
250
1,1
voltage (V)
RPM
output torque (Nm)
230 (50Hz)
17
30
Ø motor tube
45
power (W)
250
amperage (A)
1,1
voltage (V)
230 (50Hz)
RPM
17
output torque (Nm)
30
Ø motor tube
power (W)
amperage (A)
45
275
1,25
voltage (V)
RPM
output torque (Nm)
230 (50Hz)
12
50
Ø motor tube
45
power (W)
275
amperage (A)
1,25
voltage (V)
230 (50Hz)
RPM
12
output torque (Nm)
50
