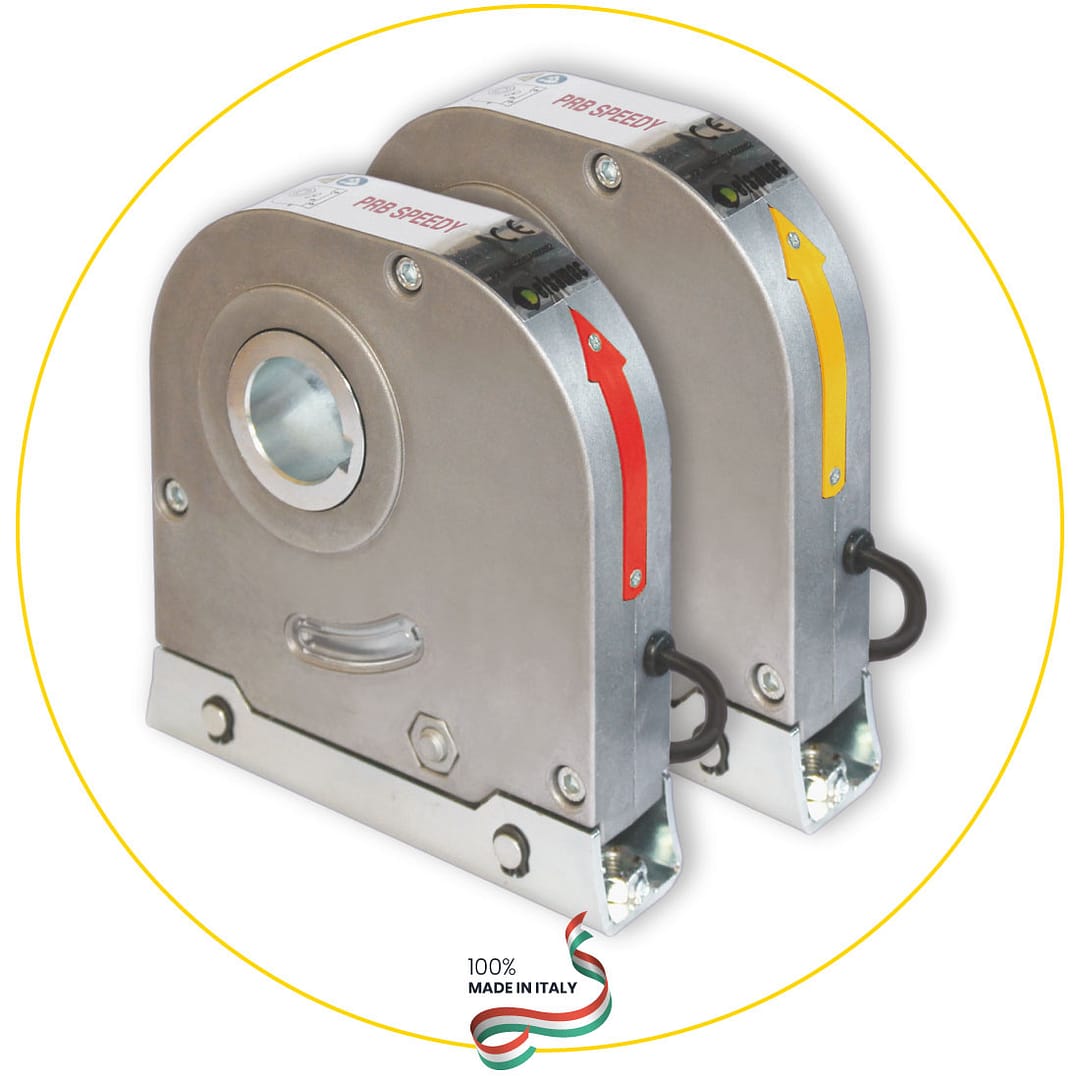

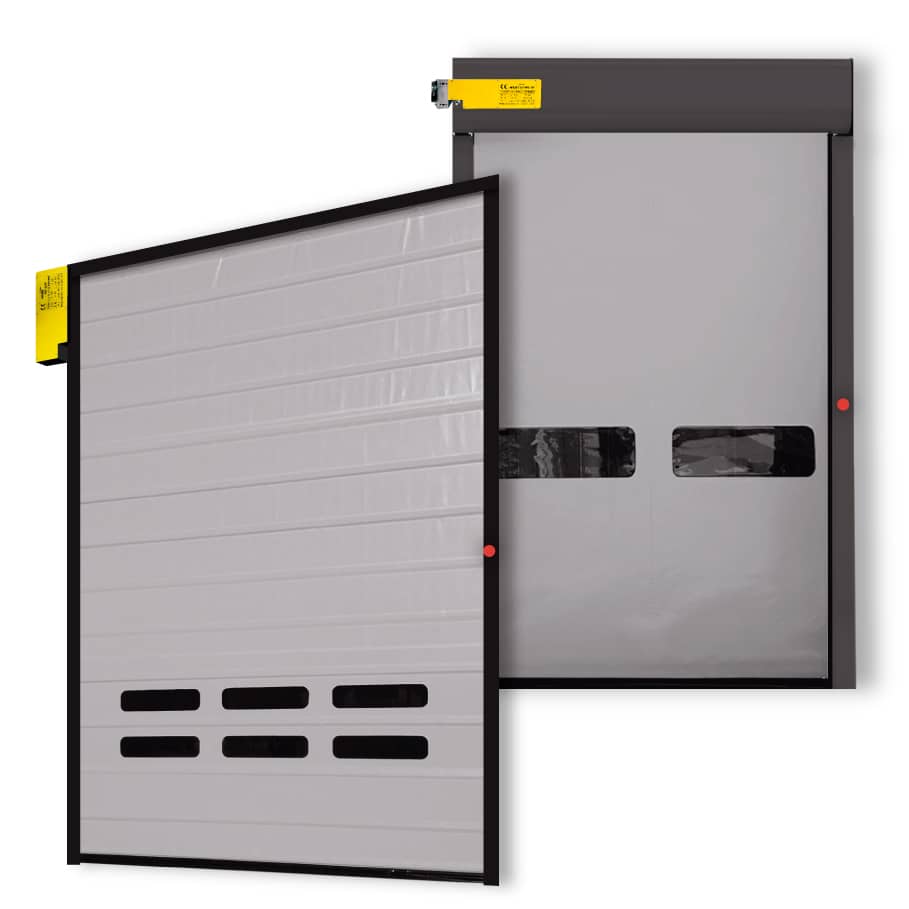

PRB SPEEDY is anti-chute system for speedy doors and fold up doors, small to large ones. It guarantees maximum safety in case of accidental events. The system allows certification of any type of door according to the safety regulations of the various countries.

The installation is very easy, as it is applied on the side of the shaft. It promptly activates and stops the rotation of the shaft when the normal rotation speed is overpassed. The system stops progressively but firmly, avoiding thus any damage to the supporting structure and preserving all the elements.

PRB SPEEDY system is characterized by the possibility, if an accidental fall occurs, of being reset and put back into operation ON SPOT. This is done by a simple reset manoeuvre made directly on the device without need of disassembling or displacing it. *(Not all versions can be reset, see the table).

PRB SPEEDY is a product developed and patented by Elsamec.

USAGES

Speedy VSF 4,5T

Speedy VSF 4,5M

Speedy VSF 6,5M

Speedy VSF 6,5T

Speedy Taurus 5M

Speedy Taurus 5T

Speedy Taurus 7T

Speedy Taurus 7M

Speedy Taurus 11M

Speedy Taurus 11T

Practical and safe

Easy installation

Reusable and resettable*

*not all versions can be reset, see the following table

VERSIONS AND TECHNICAL CHARACTERISTICS

shaft: Ø25 mm

cod. 76925502

shaft: Ø25,4 mm

cod. 76922502

shaft: Ø30 mm

cod. 76930502

admittable torque (Nm)

200

n. max speed (RPM)

50

degree of protection (IP)

65

weight (Kg)

2,230

positioning

horizontal only

reset tightening torque (Nm)

30

Standard reset on the right. On request, each model is available with reset on the left.

shaft: Ø25 mm

shaft: Ø25,4 mm

shaft: Ø30 mm

cod. 76925502

cod. 76922502

cod. 76930502

admittable torque (Nm)

n. max speed (RPM)

degree of protection (IP)

200

50

65

weight (Kg)

positioning

reset tightening torque (Nm)

2,230

horizontal only

30

Standard reset on the right. On request, each model is available with reset on the left.

shaft: Ø25 mm

cod. 76925504

shaft: Ø25,4 mm

cod. 76922504

shaft: Ø30 mm

cod. 76930504

admittable torque (Nm)

300

n. max speed (RPM)

50

degree of protection (IP)

65

weight (Kg)

2,230

positioning

horizontal only

reset tightening torque (Nm)

not resettable

shaft: Ø25 mm

shaft: Ø25,4 mm

shaft: Ø30 mm

cod. 76925504

cod. 76922504

cod. 76930504

admittable torque (Nm)

n. max speed (RPM)

degree of protection (IP)

300

50

65

weight (Kg)

positioning

reset tightening torque (Nm)

2,230

horizontal only

not resettable

shaft: Ø25 mm

cod. 76926002

shaft: Ø25,4 mm

cod. 76923002

shaft: Ø30 mm

cod. 76931002

admittable torque (Nm)

100

n. max speed (RPM)

100

degree of protection (IP)

65

weight (Kg)

2,230

positioning

horizontal only

reset tightening torque (Nm)

30

Standard reset on the right. On request, each model is available with reset on the left.

shaft: Ø25 mm

shaft: Ø25,4 mm

shaft: Ø30 mm

cod. 76926002

cod. 76923002

cod. 76931002

admittable torque (Nm)

n. max speed (RPM)

degree of protection (IP)

100

100

65

weight (Kg)

positioning

reset tightening torque (Nm)

2,230

horizontal only

30

Standard reset on the right. On request, each model is available with reset on the left.

shaft: Ø25 mm

cod. 76926004

shaft: Ø25,4 mm

cod. 76923004

shaft: Ø30 mm

cod. 76931004

admittable torque (Nm)

150

n. max speed (RPM)

100

degree of protection (IP)

65

weight (Kg)

2,230

positioning

horizontal only

reset tightening torque (Nm)

not resettable

shaft: Ø25 mm

shaft: Ø25,4 mm

shaft: Ø30 mm

cod. 76926004

cod. 76923004

cod. 76931004

admittable torque (Nm)

n. max speed (RPM)

degree of protection (IP)

150

100

65

weight (Kg)

positioning

reset tightening torque (Nm)

2,230

horizontal only

not resettable

shaft: Ø25 mm

cod. 76927002

shaft: Ø25,4 mm

cod. 76924002

shaft: Ø30 mm

cod. 76932002

admittable torque (Nm)

50

n. max speed (RPM)

200

degree of protection (IP)

65

weight (Kg)

2,230

positioning

horizontal only

reset tightening torque (Nm)

20

Standard reset on the right. On request, each model is available with reset on the left.

shaft: Ø25 mm

shaft: Ø25,4 mm

shaft: Ø30 mm

cod. 76927002

cod. 76924002

cod. 76932002

admittable torque (Nm)

n. max speed (RPM)

degree of protection (IP)

50

200

65

weight (Kg)

positioning

reset tightening torque (Nm)

2,230

horizontal only

20

Standard reset on the right. On request, each model is available with reset on the left.

shaft: Ø25 mm

cod. 76927004

shaft: Ø25,4 mm

cod. 76924004

shaft: Ø30 mm

cod. 76932004

admittable torque (Nm)

75

n. max speed (RPM)

200

degree of protection (IP)

65

weight (Kg)

2,230

positioning

horizontal only

reset tightening torque (Nm)

not resettable

shaft: Ø25 mm

shaft: Ø25,4 mm

shaft: Ø30 mm

cod. 76927004

cod. 76924004

cod. 76932004

admittable torque (Nm)

n. max speed (RPM)

degree of protection (IP)

75

200

65

weight (Kg)

positioning

reset tightening torque (Nm)

2,230

horizontal only

not resettable

ACCESSORIES

shelf for safety brake systems

cod. 76820000
