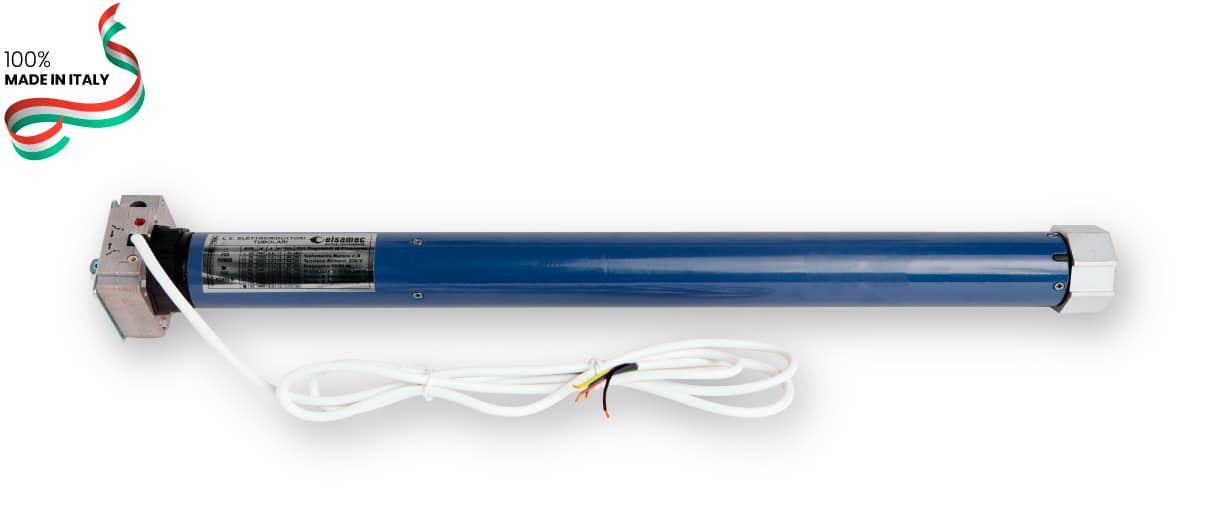

The little head of this model and its great lifting capacity, make this model ideal for big window shutters and large awnings.

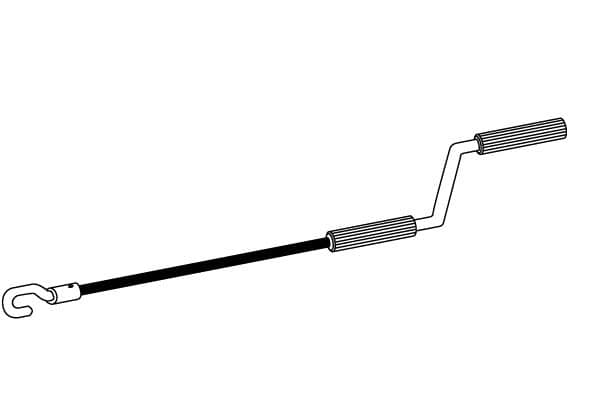

The “M” models are prepared for manual emergency manoeuvring in case of power failure.
easy, precise and progressive adjustment
torque 100 and 120 Nm

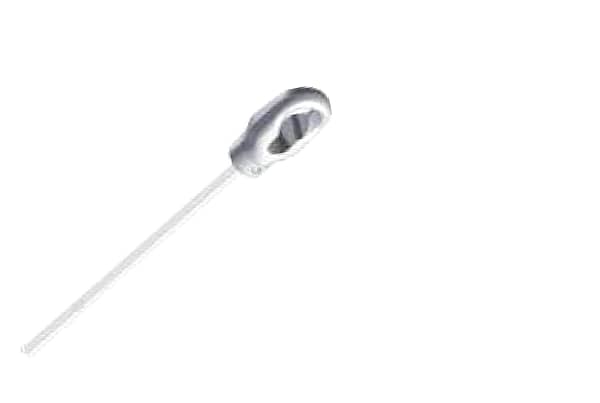

with hand override
mechanical limit switch
With metallic reducer pin for highly resistant

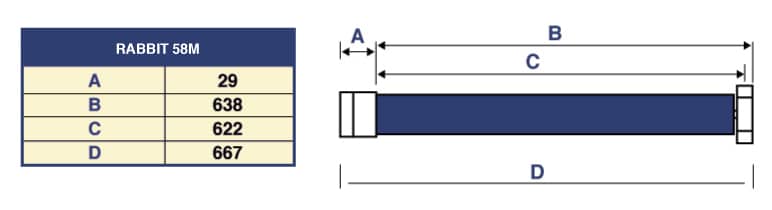

Ø motor tube
power (W)
amperage (A)
58
360
1,6
voltage (V)
RPM
output torque (Nm)
230 (50Hz)
11
100
Ø motor tube
58
power (W)
360
amperage (A)
1,6
voltage (V)
230 (50Hz)
RPM
11
output torque (Nm)
100
Ø motor tube
power (W)
amperage (A)
58
415
1,9
voltage (V)
RPM
output torque (Nm)
230 (50Hz)
11
120
Ø motor tube
58
power (W)
415
amperage (A)
1,9
voltage (V)
230 (50Hz)
RPM
11
output torque (Nm)
120
