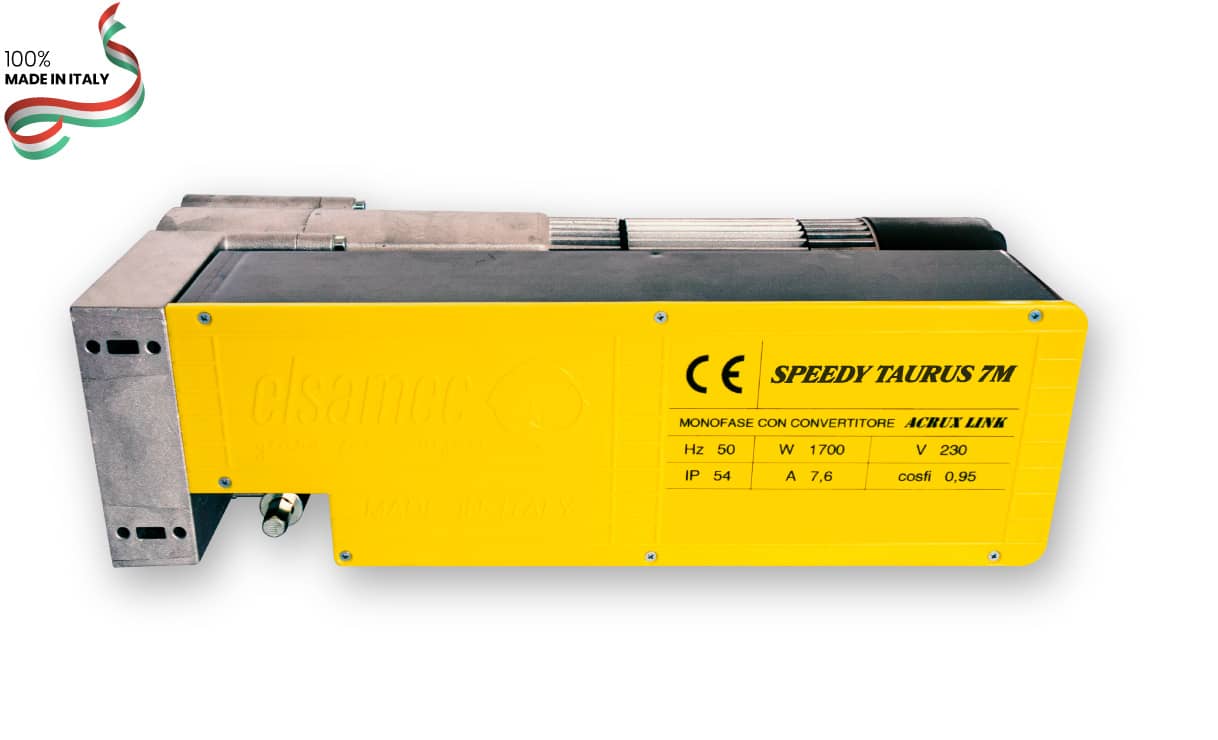

RELIABILITY, SAFETY AND MADE IN ITALY QUALITY

OPTIMISATION OF WAREHOUSE SPACE

A more efficient warehouse management thanks to the range of lifting capacity and a limited number of models and accessories available.

VARYING ROLLING UP SPEEDS

An easier programming process of all functions in order to fulfil every requirement of our customers.

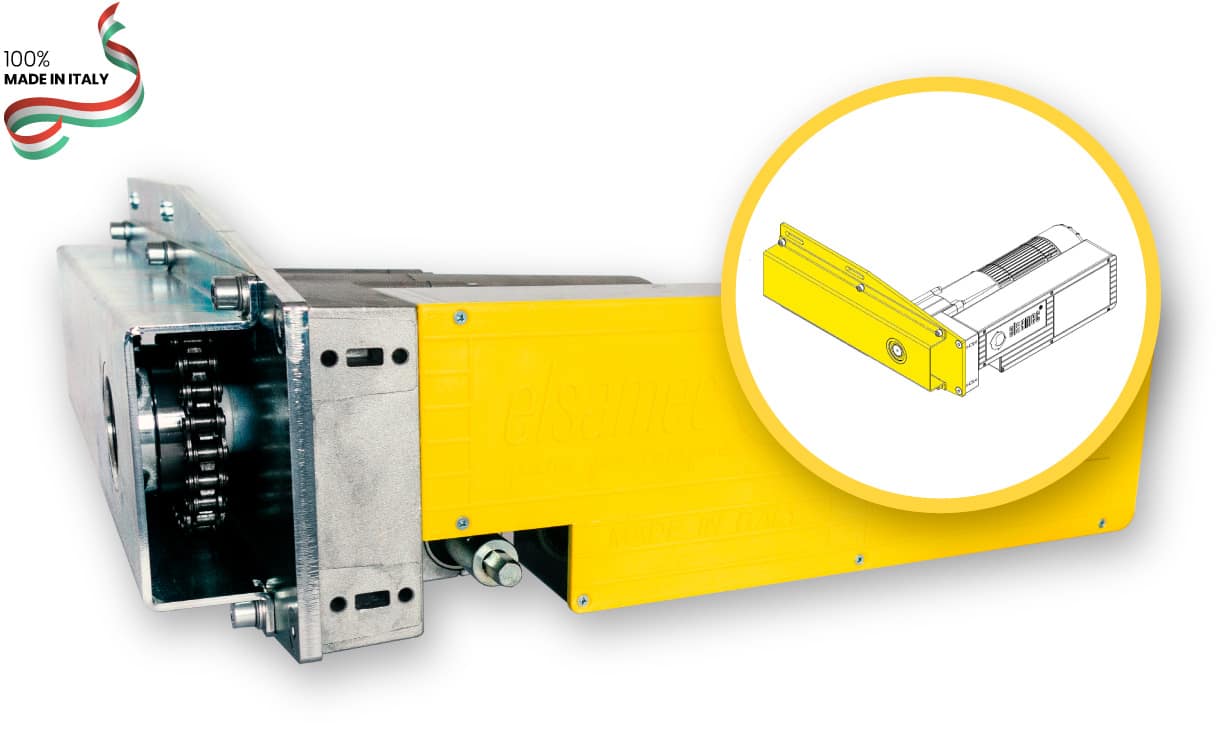

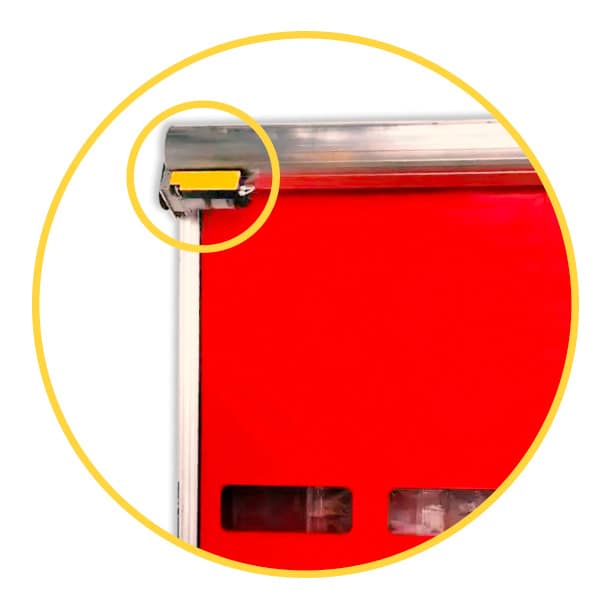

SMALL SPACE NEEDED FOR INSTALLATION

The space occupied by the motor on door’s side is reduced thanks to its positioning.

EASY TO INSTALL, USE AND SERVICE

Our on-board power electronics (Acrux) is already wired and it is connected to the command board (Merak) via one single cable (CAN BUS). Therefore, the electrical connection is faster and possible mistakes are avoided.

single-phase

torque (Nm)

lifting capacity with a tube Ø of 120 mm (kg)

output rotation speed (rpm)

linear speed with a tube Ø of 120 mm (m/s)

70

77

142

0,9

output speed adjustable by the limit switch (n°)

% services (s)

max. cycles per hour (n°)

frequency (Hz)

22

350

120

50

voltage (V)

power consumption (kW)

initial power absorption (A)

power absorption operatively (A)

230

1,7

12

7,6

torque (Nm)

70

lifting capacity with a tube Ø of 120 mm (kg)

77

output rotation speed (rpm)

142

linear speed with a tube Ø of 120 mm (m/s)

0,9

output speed adjustable by the limit switch (n°)

22

% services (s)

350

max. cycles per hour (n°)

120

frequency (Hz)

50

voltage (V)

230

power consumption (kW)

1,7

initial power absorption (A)

12

power absorption operatively (A)

7,6

torque (Nm)

lifting capacity with a tube Ø of 120 mm (kg)

output rotation speed (rpm)

linear speed with a tube Ø of 120 mm (m/s)

70

116

95

0,6

output speed adjustable by the limit switch (n°)

% services (s)

max. cycles per hour (n°)

frequency (Hz)

15

530

80

50

voltage (V)

power consumption (kW)

initial power absorption (A)

power absorption operatively (A)

230

1,7

12

7,6

torque (Nm)

70

lifting capacity with a tube Ø of 120 mm (kg)

116

output rotation speed (rpm)

95

linear speed with a tube Ø of 120 mm (m/s)

0,6

output speed adjustable by the limit switch (n°)

15

% services (s)

530

max. cycles per hour (n°)

80

frequency (Hz)

50

voltage (V)

230

power consumption (kW)

1,7

initial power absorption (A)

12

power absorption operatively (A)

7,6

torque (Nm)

lifting capacity with a tube Ø of 120 mm (kg)

output rotation speed (rpm)

linear speed with a tube Ø of 120 mm (m/s)

70

174

63

0,4

output speed adjustable by the limit switch (n°)

% services (s)

max. cycles per hour (n°)

frequency (Hz)

10

795

200

50

voltage (V)

power consumption (kW)

initial power absorption (A)

power absorption operatively (A)

230

1,7

12

7,6

torque (Nm)

70

lifting capacity with a tube Ø of 120 mm (kg)

174

output rotation speed (rpm)

63

linear speed with a tube Ø of 120 mm (m/s)

0,4

output speed adjustable by the limit switch (n°)

10

% services (s)

795

max. cycles per hour (n°)

200

frequency (Hz)

50

voltage (V)

230

power consumption (kW)

1,7

initial power absorption (A)

12

power absorption operatively (A)

7,6

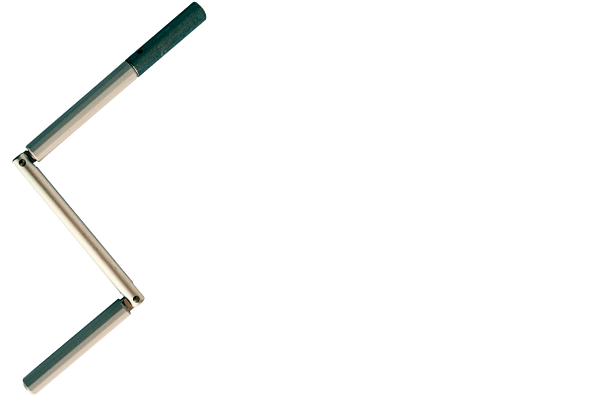

articulated handle

for manual override
cod. 76110001

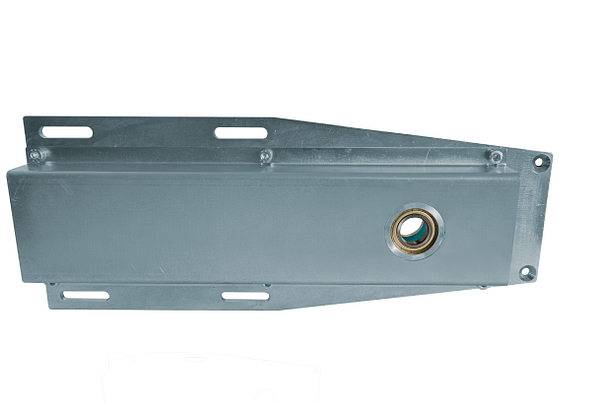

bracket Speedy Taurus

available in three gear ratios

shelf for safety brake systems

cod. 76820000

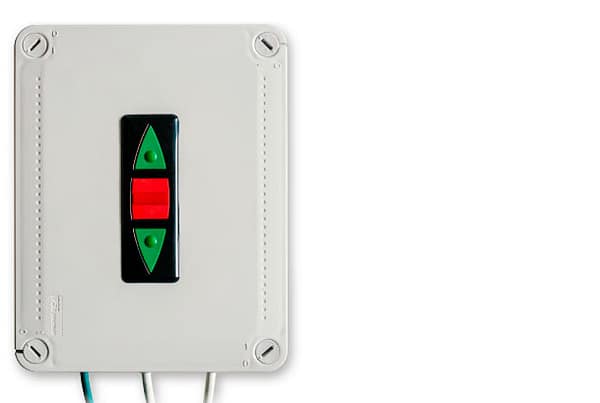

Merak

command board for speed control
available in 4 versions

Rak 01

pushbutton for Merak (3 buttons)
cod. 77010000

Rak 02

control device for Merak
cod. 77020000

Cable CAN BUS

1 m
cod. 19207080

photocells wall shielded

photo 360
cod. 93780000

aerial for receiver

433.9 MHz
cod. 93610000

flashing light

wall-mounted
cod. 93740000

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

PRB SPEEDY

safety brake system for speedy doors and fold up doors

switch panel

for indoor, wall-mounted
cod. 77160000

Selective

key selector
cod. 77760000

Raindrop

for outdoors
cod. 77180000

built in safe

with brake release
cod. 77320000
