Versions

Code Description
73210000 without electromagnetic brake
73220000 with electromagnetic brake
Ask for price-quotation

Features

for rolling shutters up to 400 kg and 7m wide

Can be installed on all rolling shutters, even those already mounted

Easy and quick assembly

Sintered electromagnetic brake

Quick and intuitive release

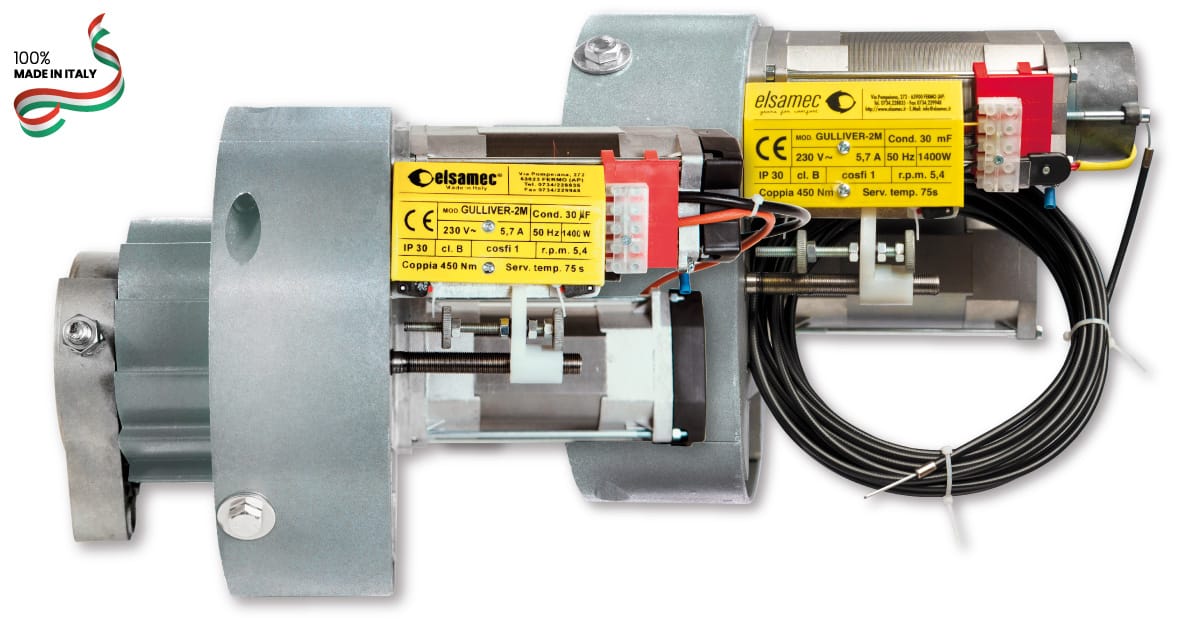

2 motors

Technical data

∅ Compensation springs 280 mm
Output torque on motor 450 Nm
Lift capacity 400 Kg
Power supply 230/115* V
Frequency 50/60 Hz
Consumption 6 A
Power 1400 W
Protection Category IP 40
Output speed 5,4 RPM
Ø Installation shaft 101,6 mm

* available on request

electrobrake

brake cable 10 m
cod. 75150010

brake release handle

cod. 75360000

Gulliver block

safety-brake system for Gulliver series
cod. 78130000

Mini Progress LED

control unit for remote control
cod. 79140012

Polaris

low voltage control
cod. 93350000

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

Julius

Photocells wall shielded
cod. 93790000

safety light curtains

Photoelectric sensors
cod. 93800020
cod. 93800026

flashing light


cod. 93740000

switch panel

for indoor, wall-mounted
cod. 77160000

Raindrop

for outdoors
cod. 77180000

Selective

key selector
cod. 77760000

brake release kit for key-switch Selective

cod. 77800000

metal encased push button

with brake release
cod. 77250000

metal encased push button

without brake release
cod. 77240000

built in safe

with brake release
cod. 77320000

built in safe

without brake release
cod. 77310000

frame

cod. 77330000

caseback

cod. 77340000

brake release kit

cod. 77350000

release Kit

with cable and sheath
cod. 77370000

Sensitive

safety contactor
cod. 77940000
