Versions

Code Description

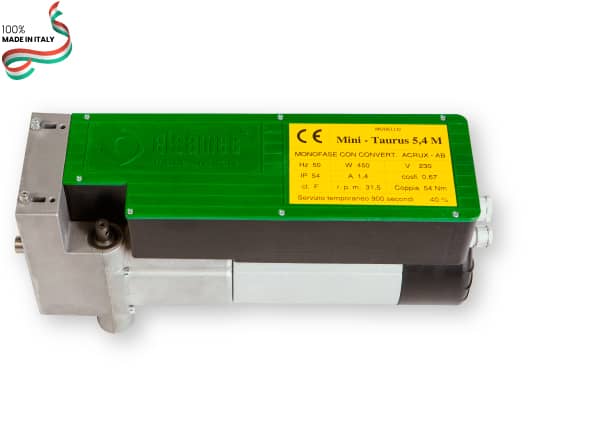

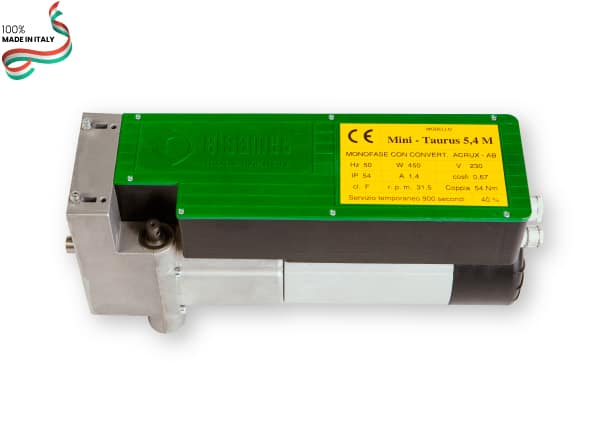

74030000 single-phase 230V with Acrux AB inverter control unit
74050000 three-phase 400V with Meteor AB control unit
74010000 three-phase 230V without control unit
74010001 three-phase 400V without control unit
Ask for price-quotation

Features

Emergency operation always-engaged with crank (patented system)

Drastically reduced side installation dimensions to 12 cm with easy maintenance

For residential and industrial shutters up to 467,5 kg

Compact Accessories for Small and Medium-Sized Roller Shutters

Mechanical and electronic limit switch

Automatic and deadman control, with dry contact switches, integrated in the board

The on-board control panels provide power supply and control logic for photocells and/or 12 Vdc barriers.

Technical data

Power supply
1~230 V
3~400 V
Output torque on motor 54 Nm
Output torque on shaft 237,6 Nm
Max lift capacity 467,5 Kg
Frequency 50/60 Hz
Consumption
1,5 A
0,8 A
Power 450 W
Protection Category IP 54
Output speed on motor 31,5 RPM
Output speed on shaft 7,16 RPM
Ø Installation shaft 30 mm

manual override kit with handle

(bar excluded)
cod. 76110000

Manual override kit from outside

cod. 76130001

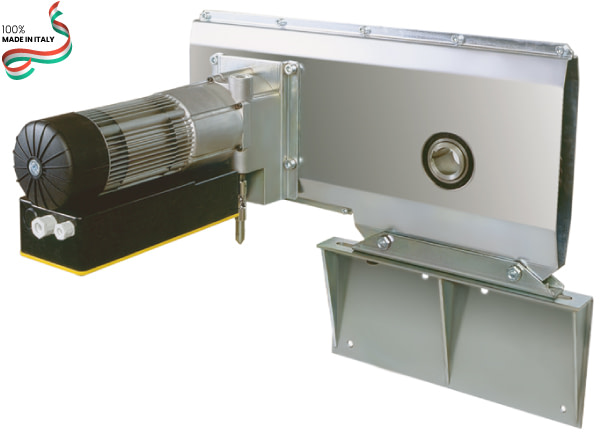

Motor bracket Evo 1:4,4

cod. 76880000

Fixing kit

for Evo side-bracket
cod. 76890000

shaft Ø30

with tongue, for Safety brake systems PRB 30
cod. 76860000

shelf

for Safety brake system PRB 30, motor bracket Evo, motor bracket Easy
cod. 76820000

stop ring

for axle Ø30
cod. 76730000

Couple of flanges Ø160.7

for tubes Ø 168.3 x 3.6
cod. 70160000

Couple of flanges Ø152.2

for tubes Ø 159 x 3.2
cod. 70150000

Couple of flanges Ø126.8

for tubes Ø 133 x 2.9
cod. 70140000

pair of flanges Ø96

for tubes Ø 101,6 x 2,6
cod. 70130000

PRB 30

safety-brake system rearmable

Alkes plus 1

Inverter with integrated logic
cod. 79280001

Alkes plus 2

Inverter with integrated logic
cod. 79280002

Alkes plus 3

Inverter with integrated logic
cod. 79280003

Alkes plus 4

Inverter with integrated logic
cod. 79280004

Rak 01

Control device
77010000

Rak 02

Control device
77020000

Rak 03

Control device
cod. 97030000

Rak 04

Control device
cod. 97040000

Acrux plus evo

inverter
cod. 79240002

Meteor plus

three-phase low voltage command
cod. 79220022

interface module

cod. 79230000

Mini Progress LED

control unit for remote control
cod. 79140012

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

Julius

Photocells wall shielded
cod. 93790000

safety light curtains

Photoelectric sensors
cod. 93800020
cod. 93800026

flashing light


cod. 93740000

switch panel

for indoor, wall-mounted
cod. 77160000

Raindrop

for outdoors
cod. 77180000

Selective

key selector
cod. 77760000

metal encased push button

without brake release
cod. 77240000

built in safe

without brake release
cod. 77310000

Sensitive

safety contactor
cod. 77940000
