Safety-brake system certified by TÜV SUD.
TorFV 14/173

go to: "all safety-brake system"

USAGES

Mini Taurus 5,4

30/200 cod. 76930002
30/400 cod. 76930004

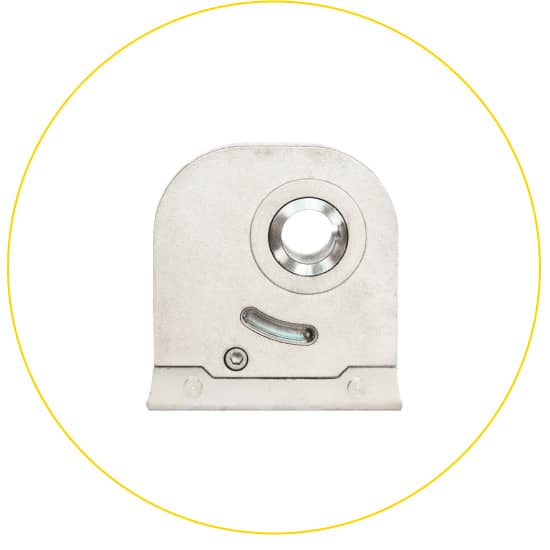

Our Safety Brake system PRB for rolling shutters and other doors with vertical movement is designed and constructed in compliance with the Standards UNI EN12604 and UNI EN 12605to guarantee maximum safety in case of the accidental fall of the shutter

The system engages when the rotation speed of the rollshutter’s tube exceeds its normal rate.

The safety brake PRB stops the rotation of the tube in a progressive but very strong manner.

The system PRB is characterized by the possibility of being RESET and put again into function after an accidental fall of the shutter, by performing a simple procedure of “REARMING” made DIRECTLY on the tube, without any need of disassembling, or any replacement operation.

30/200 max torque 200Nm
30/400 max torque 400Nm

Accessories

shaft Ø30

with tongue, for Safety brake systems PRB 30
cod. 76860000

shelf

for Safety brake system PRB 30, motor bracket Evo, motor bracket Easy
cod. 76820000
