Safety-brake system certified by TÜV SUD.
TorFV 14/172
40/600 cod. 76940006
40/900 cod. 76940009

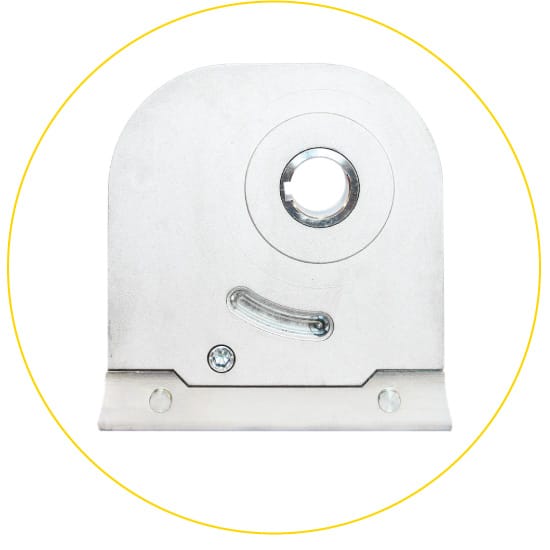

Our Safety Brake system PRB for rolling shutters and other doors with vertical movement is designed and constructed in compliance with the Standards UNI EN12604 and UNI EN 12605to guarantee maximum safety in case of the accidental fall of the shutter
The system engages when the rotation speed of the rollshutter’s tube exceeds its normal rate.
The safety brake PRB stops the rotation of the tube in a progressive but very strong manner.
The system PRB is characterized by the possibility of being RESET and put again into function after an accidental fall of the shutter, by performing a simple procedure of “REARMING” made DIRECTLY on the tube, without any need of disassembling, or any replacement operation.
40/600 max torque 600Nm
40/900 max torque 900Nm
download
sheet PRB series
instructions PRB series
