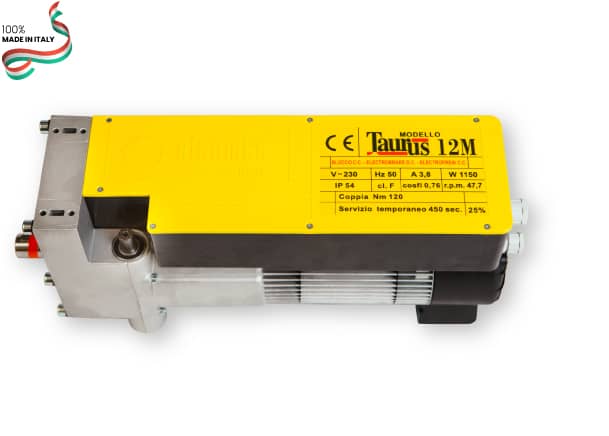

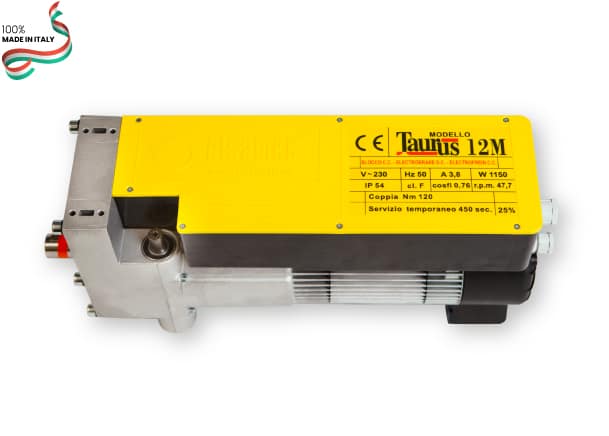

Versions
| Code | Description |
|---|---|
| 74290000 | single-phase 230V with Acrux AB inverter control unit |
| 74250000 | three-phase 400V with Meteor AB control unit |
| 74140000 | three-phase 230V without control unit |
| 74140001 | three-phase 400V without control unit |
Features
Emergency operation always-engaged with crank (patented system)
Drastically reduced side installation dimensions to 12 cm with easy maintenance
For shutters up to 1263 kg
For industrial use shutters of medium and large sizes
Mechanical and electronic limit switch
Automatic and deadman control, with dry contact switches, integrated in the board
The on-board control panels provide power supply and control logic for photocells and/or 12 Vdc barriers.

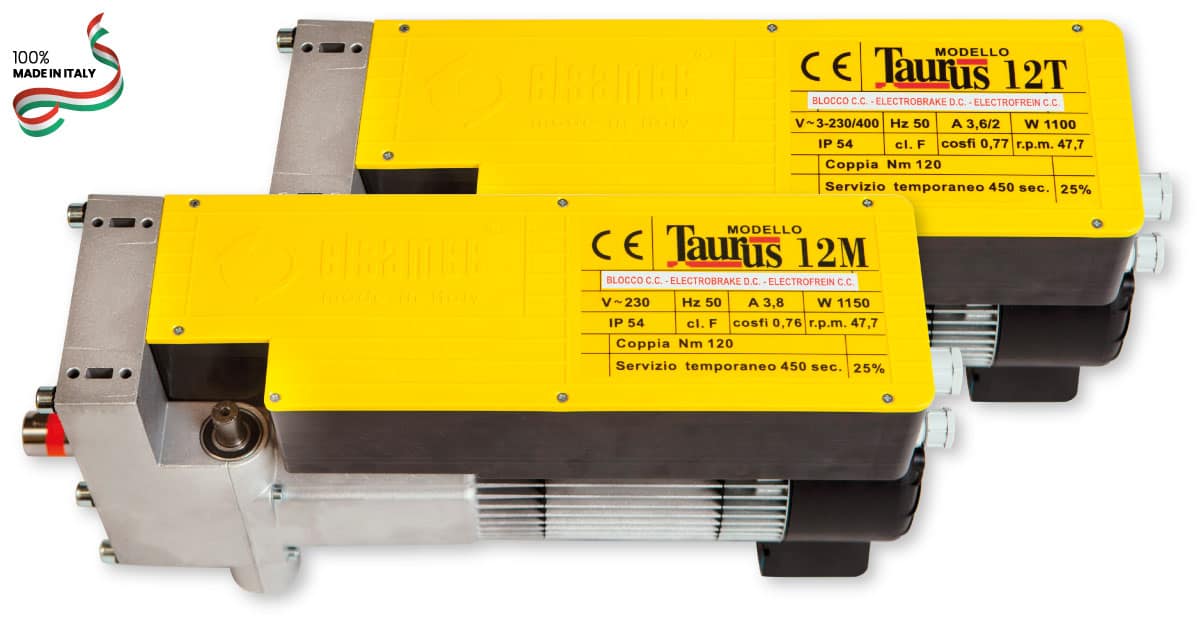

Technical data
+ safety-brake systems
safety-brake systems PRB
shelf
Taurus
motor-side bracket
wall-in for support motor-side bracket
Emergency operation with hand crank
Emergency operation with hand chain
Mechanical limit switch with safety microswitches
Electronic limit switch with absolute multi-turn encoder
| Power supply |
1~230 V
3~400 V
|

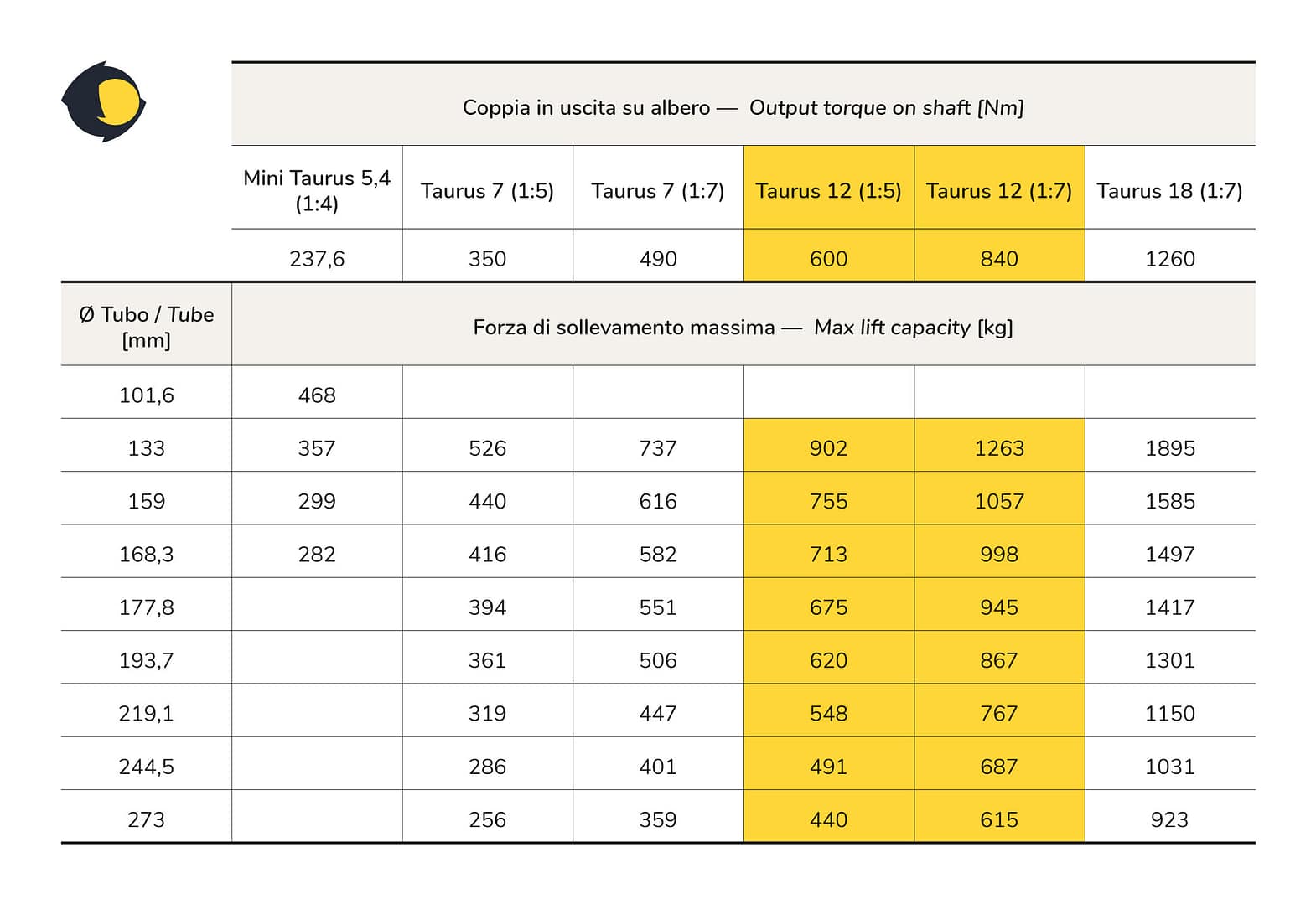

| Output torque on motor | 120 Nm |
| Output torque on shaft | 600 Nm |
| Max lift capacity | 902 Kg |
| Frequency | 50/60 Hz |
| Consumption |
3,6 A
2 A
|
| Power | 1100 W |
| Protection Category | IP 54 |
| Output speed on motor | 47,7 RPM |
| Output speed on shaft | 9,5 RPM |
| Ø Installation shaft | 40 mm |
| Power supply |
1~230 V
3~400 V
|
| Output torque on motor | 120 Nm |
| Output torque on shaft | 840 Nm |
| Max lift capacity | 1263 Kg |
| Frequency | 50/60 Hz |
| Consumption |
3,6 A
2 A
|
| Power | 1100 W |
| Protection Category | IP 54 |
| Output speed on motor | 47,7 RPM |
| Output speed on shaft | 6,8 RPM |
| Ø Installation shaft | 50 mm |
