Taurus
motor-side bracket gear ratio 1:7 Magnum
match support or shelf for motor-side bracket in relation to the chosen transmission ratio
connection for axle with tongue to be combined with a pair of flanges according to the tube Ø
safety-brake systems PRB
shelf
Taurus
motor-side bracket
wall-in for support motor-side bracket

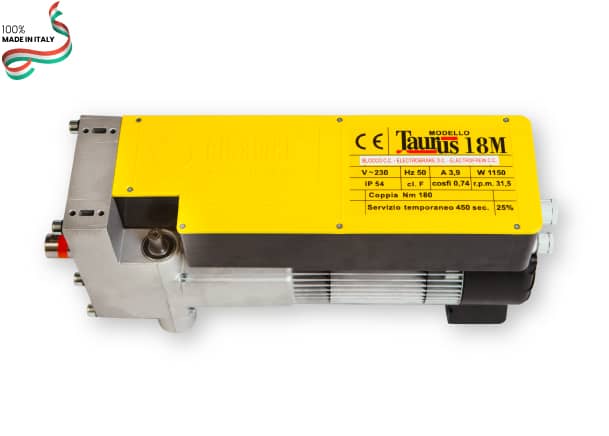

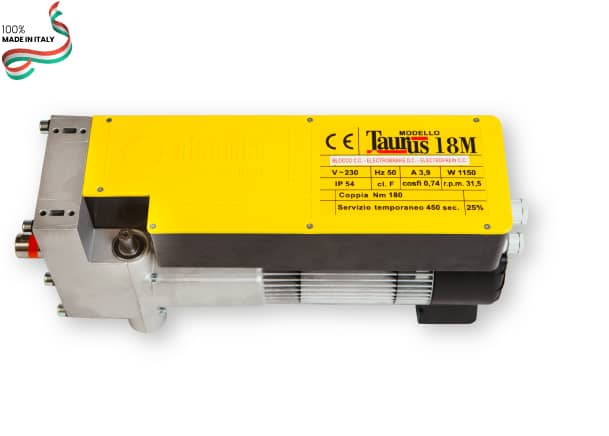

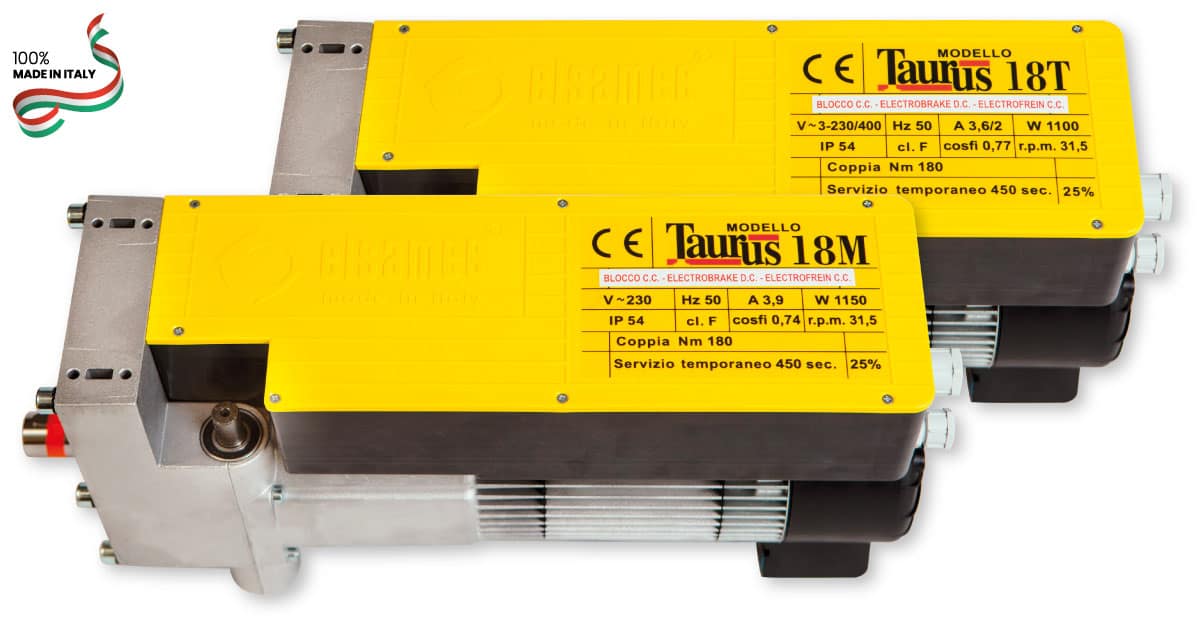

TAURUS 18-M side-motor with single-phase 230V supply for industrial NON-INTENSIVE use.

The output torque of 180Nm develops into 1.260Nm using the specific side-gear 1:7 Magnum, and allows automation of shutters of great dimensions and weights. Supplied with ACRUX AB command on board.

This series of motors was born as a response on the growing demand of side-motors for unbalanced roller shutters of big weight and dimensions.

The main characteristics and advantages of the motor Taurus are the smaller area occupied by the motor in the system and the simplicity of its installation and maintenance.

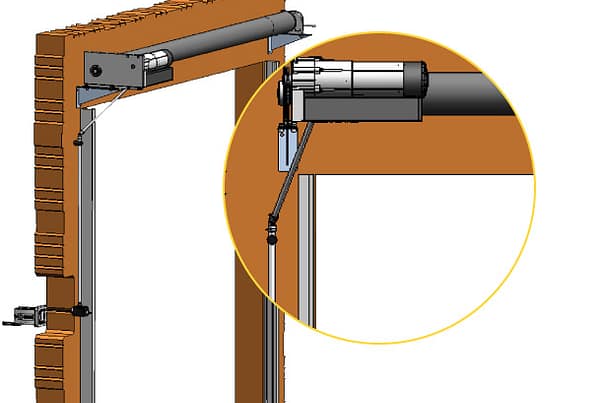

The system Taurus is reliable, secure and versatile thanks to a complete range of the accessories available. The Manual Override of TAURUS gives the advantage of being inserted at all times; in case of emergency manoeuvring by hand, the override does not need to be geared (patented system), yet it does not interfere during normal functioning.

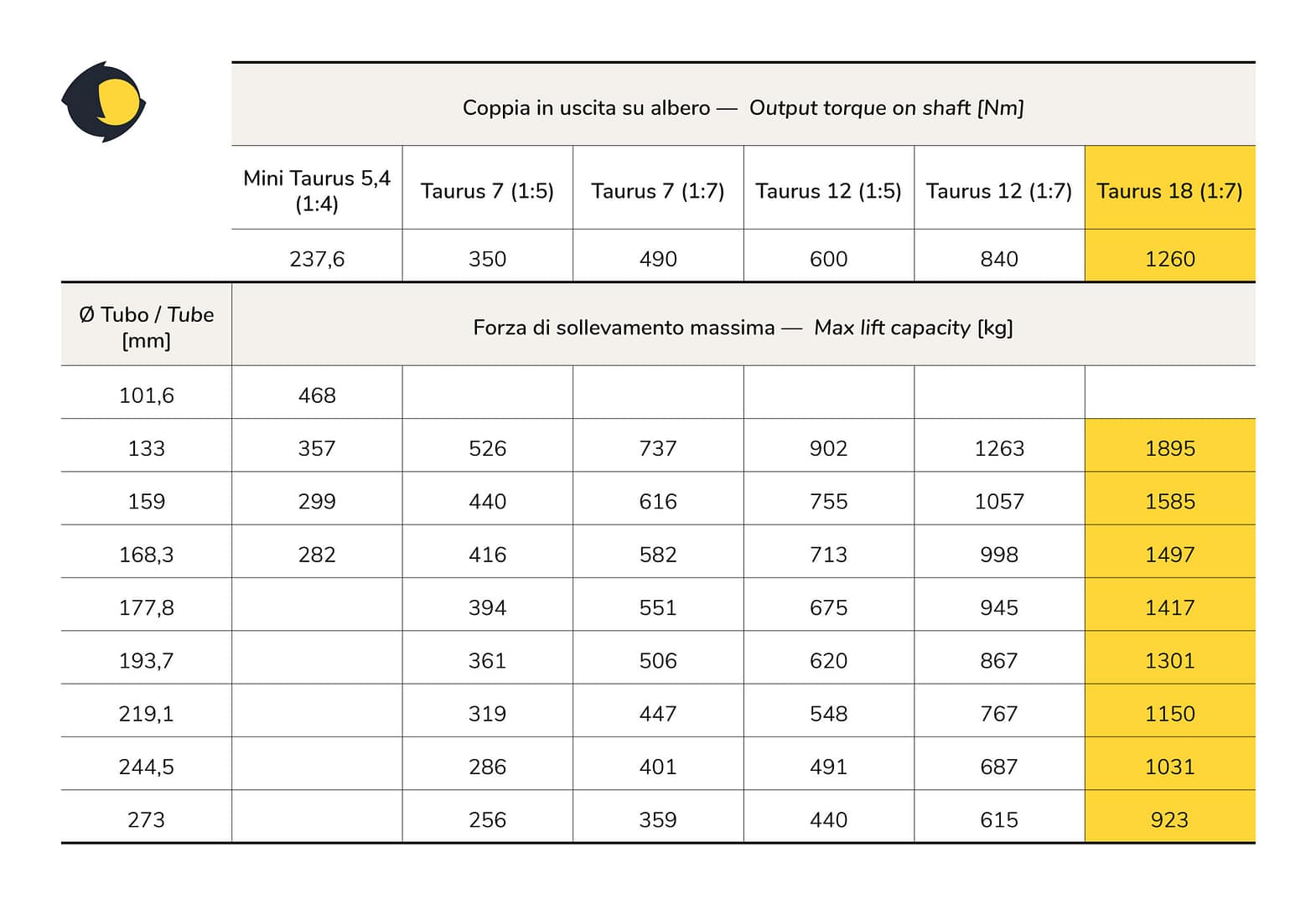

lifting capacity up to 1520 Kg

can be installed also in tight spaces: easy access for maintenance

tube rotation speed up to 4.5 RPM

single-phase

power (W)

1150

amperage (A)

3,9

voltage (V)

230

frequency (Hz)

50

RPM

47,7

tube rotation speed ratio 1:5 (RPM)

tube rotation speed ratio 1:7 (RPM)

4,5

output torque (Nm)

180

power (W)

amperage (A)

voltage (V)

frequency (Hz)

1150

3,9

230

50

RPM

tube rotation speed ratio 1:5 (RPM)

tube rotation speed ratio 1:7 (RPM)

output torque (Nm)

47,7

4,5

180

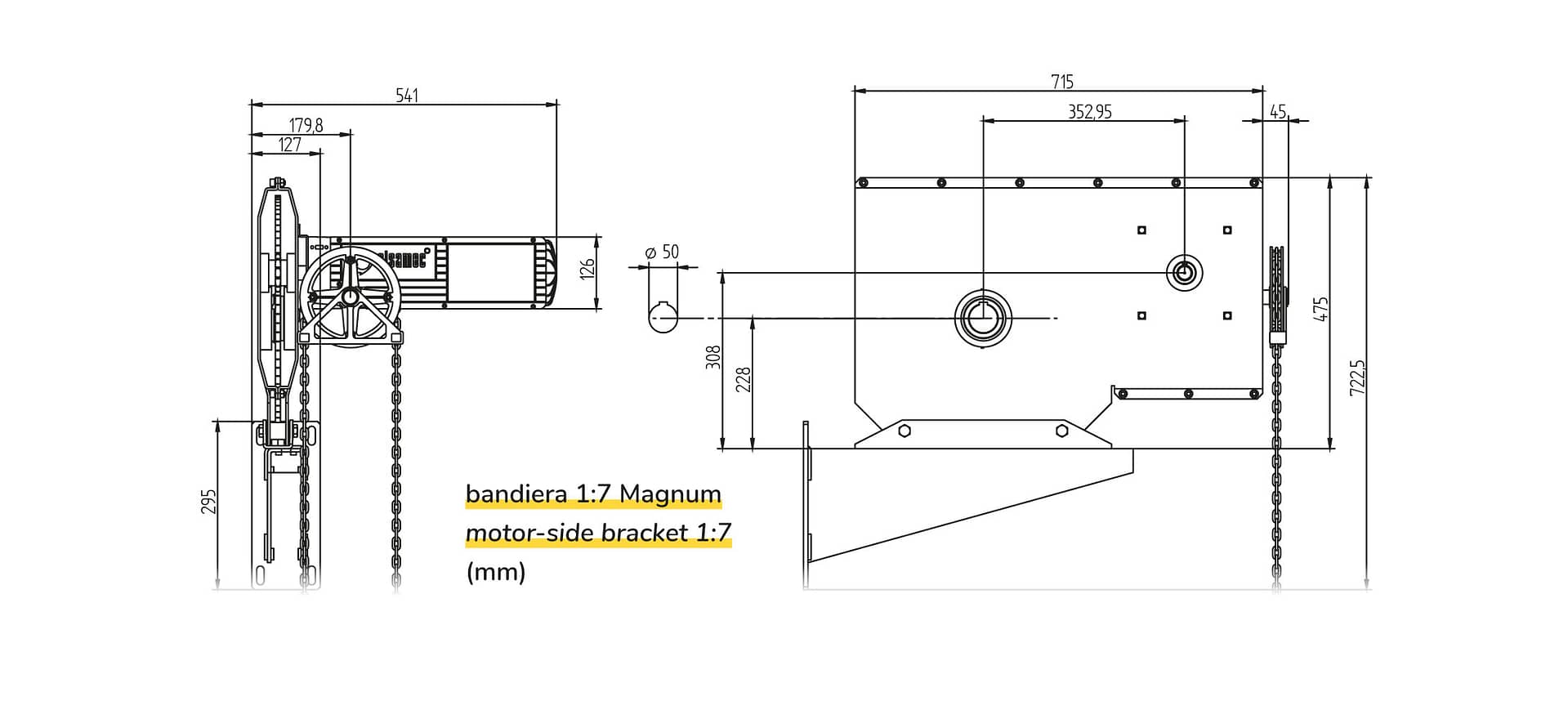

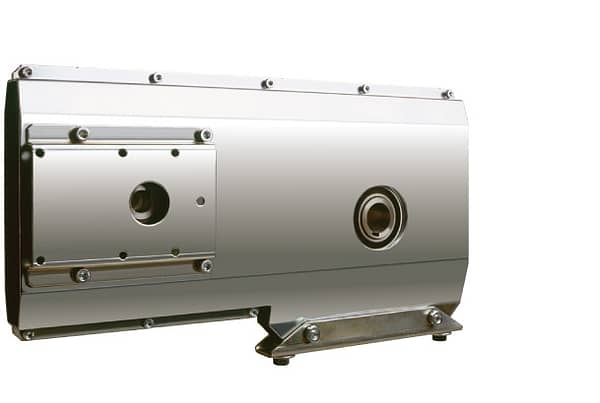

motor-side bracket 1:7 magnum

with double chain
cod. 76170002

support for motor-side bracket 1:7

cod. 76520000

stop ring

for axle Ø50
cod. 76750000

axle Ø50

for motor-side bracket 1:7, with tongue
cod. 76190000

pair of flanges Ø259.9

for tubes Ø 273 x 6.3
cod. 76420000

pair of flanges Ø231.4

for tubes Ø 244.5 x 6.3
cod. 76400000

pair of flanges Ø206.8

for tubes Ø 219.1 x 5.9
cod. 76380000

pair of flanges Ø182.4

for tubes Ø 193.7 x 5.4
cod. 76340000

pair of flanges Ø167.3

for tubes Ø 177.8 x 5
cod. 76320000

pair of flanges Ø158.8

for tubes Ø 168.3 x 4.5
cod. 76280000

pair of flanges Ø149.5

for tubes Ø 159 x 4.5
cod. 76260000

pair of flanges Ø124.5

for tubes Ø 133 x 4
cod. 76220000

PRB 50

safety-brake system rearmable

motor-side bracket 1:7 magnum

with double chain
cod. 76170002

wall-in support for motor-side bracket 1:7

cod. 76540000

support for motor-side bracket 1:7

cod. 76520000

Chain for manual override

per metre
cod. 76580000

Kit for chain emergency operation for all models

manual operation
cod. 76120000

stop ring

for axle Ø50
cod. 76750000

axle Ø50

for motor-side bracket 1:7, with tongue
cod. 76190000

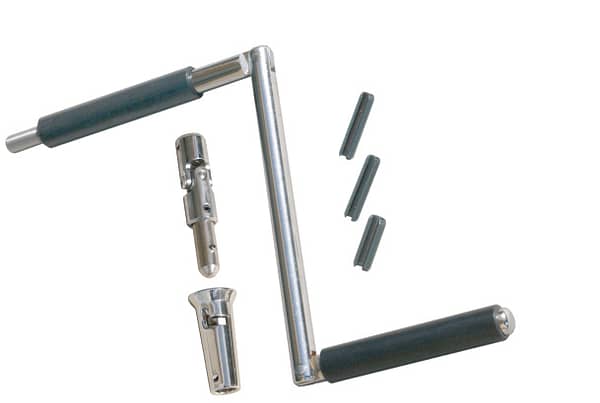

manual override kit with crank

manual override from outside
cod. 76100000

pair of flanges Ø259.9

for tubes Ø 273 x 6.3
cod. 76420000

pair of flanges Ø231.4

for tubes Ø 244.5 x 6.3
cod. 76400000

pair of flanges Ø206.8

for tubes Ø 219.1 x 5.9
cod. 76380000

pair of flanges Ø182.4

for tubes Ø 193.7 x 5.4
cod. 76340000

pair of flanges Ø167.3

for tubes Ø 177.8 x 5
cod. 76320000

pair of flanges Ø158.8

for tubes Ø 168.3 x 4.5
cod. 76280000

pair of flanges Ø149.5

for tubes Ø 159 x 4.5
cod. 76260000

pair of flanges Ø124.5

for tubes Ø 133 x 4
cod. 76220000

manual override kit with handle

(bar excluded)
cod. 76110000

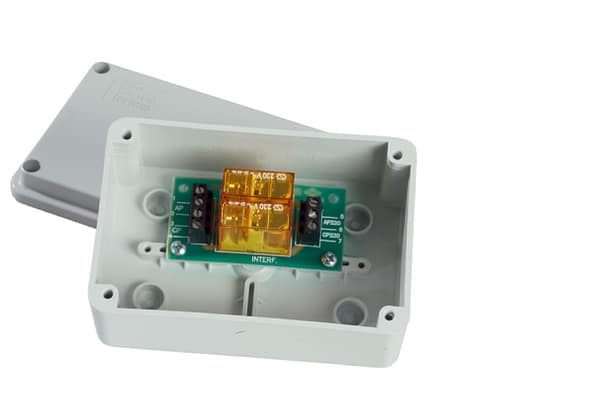

interface module

cod. 79230000

Mini Progress LED

control unit for remote control
cod. 79140012

Merak

command board for speed control
available in 4 versions

Rak 01

pushbutton for Merak (3 buttons)
cod. 77010000

Rak 02

control device for Merak
cod. 77020000

Cable CAN BUS

1 m
cod. 19207080

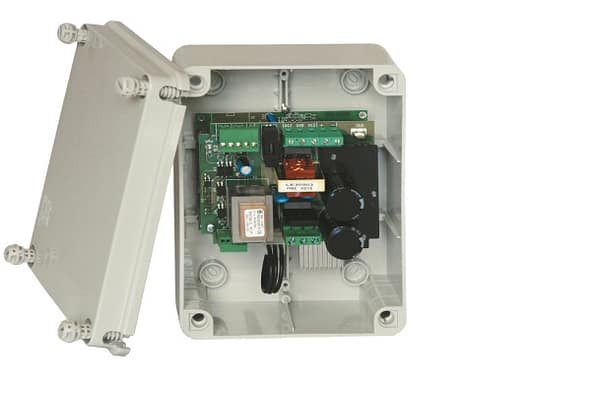

Acrux plus evo

inverter
cod. 79240000

photocells wall shielded

photo 360
cod. 93780000

aerial for receiver

433.9 MHz
cod. 93610000

flashing light

wall-mounted
cod. 93740000

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

switch panel

for indoor, wall-mounted
cod. 77160000

Selective

key selector
cod. 77760000

Raindrop

for outdoors
cod. 77180000

metal encased push button

without brake release
cod. 77240000

built in safe

without brake release
cod. 77310000

Sensitive

safety contactor
cod. 77940000
