Taurus
motor-side bracket available in gear ratios 1:5 / 1:7
match support or shelf for motor-side bracketin relation to the chosen transmission ratio
connection for axle with tongue to be combined with a pair of flanges according to the tube Ø

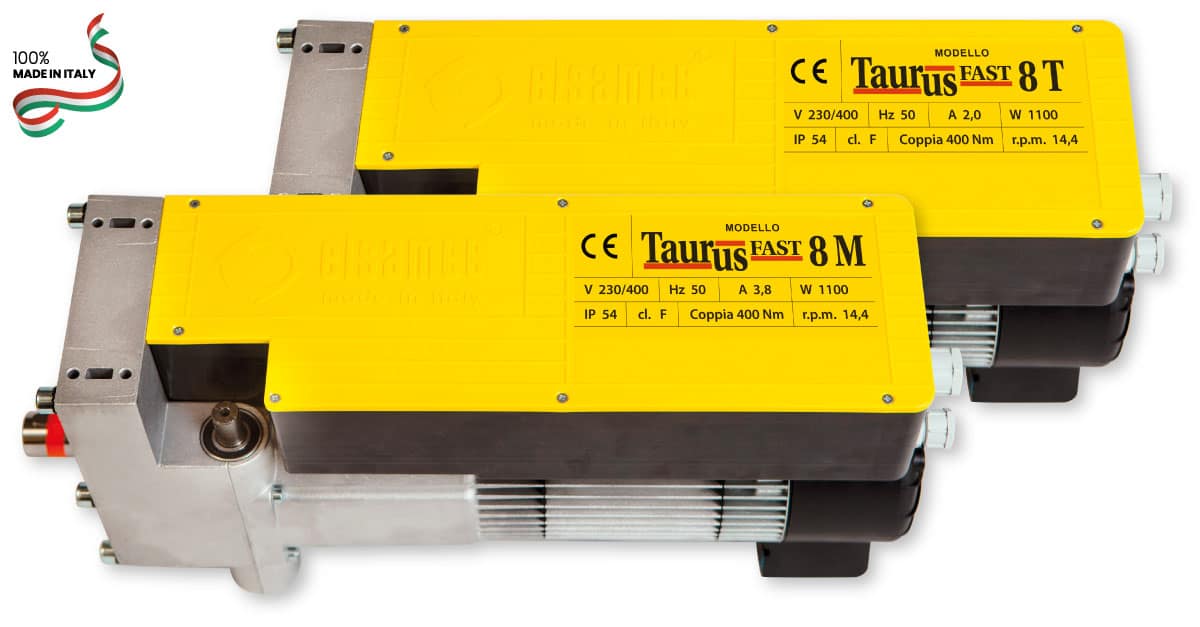

The TAURUS FAST 8M is a proven and reliable lateral engine forfast shutters.

It is the easiest solution to install for residential or industrial windings,where you need a quick opening.

The engine is equipped with the ACRUX AB LINK converter (72 RPM) housed on board on IP67 watertight box. The ACRUX AB LINK is a single-phase converter with an electroreducer, with a teleinvertitor function, a low-voltage control in man present and ramp of acceleration and deceleration.

The TAURUS FAST 8M combined with the Merak control unit allows the control of opening and closing speeds that can be adjusted by changing the frequency.

Maximum connection speed with the Merak control unit via CAN BUS cable (4mt).

The Merak control unit is adaptable to all transmission kits already in use.
Available in three versions:

  • BASIC:management centre for the control of the ACRUX AB LINK
    79260001
  • PLUS: management center with control button
    79260002
  • RADIO CONTROL: management center with receiver control button with remote control
    79260003

Accessories with the control unit:

  • RAK 01: Three-key button
    77010000
  • RAK 02:Two-position switch control device and emergency stop
    77020000

adjustable speedby changing frequency from the Merak control unit

Acrux ab linkconverter (72 rpm) on board on IP67 watertight box

winding speed up to 108 RPM

cable control unit connection can bus (4 m)

single-phase

power (W)

1150

amperage (A)

3,8

voltage (V)

230

frequency (Hz)

50

RPM

72

tube rotation speed ratio 1:5 (RPM)

14,4

tube rotation speed ratio 1:7 (RPM)

10,3

output torque (Nm)

80

power (W)

amperage (A)

voltage (V)

frequency (Hz)

1150

3,8

230

50

RPM

tube rotation speed ratio 1:5 (RPM)

tube rotation speed ratio 1:7 (RPM)

output torque (Nm)

72

14,4

10,3

80

power (W)

1150

amperage (A)

3,8

voltage (V)

230

frequency (Hz)

40

RPM

57

tube rotation speed ratio 1:5 (RPM)

11,5

tube rotation speed ratio 1:7 (RPM)

8,2

output torque (Nm)

100

power (W)

amperage (A)

voltage (V)

frequency (Hz)

1150

3,8

230

40

RPM

tube rotation speed ratio 1:5 (RPM)

tube rotation speed ratio 1:7 (RPM)

output torque (Nm)

57

11,5

8,2

100

power (W)

1150

amperage (A)

3,8

voltage (V)

230

frequency (Hz)

60

RPM

86

tube rotation speed ratio 1:5 (RPM)

17,3

tube rotation speed ratio 1:7 (RPM)

12,4

output torque (Nm)

66

power (W)

amperage (A)

voltage (V)

frequency (Hz)

1150

3,8

230

60

RPM

tube rotation speed ratio 1:5 (RPM)

tube rotation speed ratio 1:7 (RPM)

output torque (Nm)

86

17,3

12,4

66

power (W)

1150

amperage (A)

3,8

voltage (V)

230

frequency (Hz)

75

RPM

108

tube rotation speed ratio 1:5 (RPM)

21,8

tube rotation speed ratio 1:7 (RPM)

15,6

output torque (Nm)

50

power (W)

amperage (A)

voltage (V)

frequency (Hz)

1150

3,8

230

75

RPM

tube rotation speed ratio 1:5 (RPM)

tube rotation speed ratio 1:7 (RPM)

output torque (Nm)

108

21,8

15,6

50

motor-side bracket 1:5

cod. 76150001

wall-in support for motor-side bracket 1:5

cod. 76530000

shelf for motor-side bracket 1:5

cod. 76510000

stop ring

for axle Ø40
cod. 76740000

axle Ø40

for motor-side bracket 1:5, with tongue
cod. 76180000

pair of flanges Ø259.9

for tubes Ø 273 x 6.3
cod. 76420000

pair of flanges Ø231.4

for tubes Ø 244.5 x 6.3
cod. 76400000

pair of flanges Ø206.8

for tubes Ø 219.1 x 5.9
cod. 76380000

pair of flanges Ø182.4

for tubes Ø 193.7 x 5.4
cod. 76340000

pair of flanges Ø167.3

for tubes Ø 177.8 x 5
cod. 76320000

pair of flanges Ø158.8

for tubes Ø 168.3 x 4.5
cod. 76280000

pair of flanges Ø149.5

for tubes Ø 159 x 4.5
cod. 76260000

pair of flanges Ø124.5

for tubes Ø 133 x 4
cod. 76220000

motor-side bracket 1:7

cod. 76170000

wall-in support for motor-side bracket 1:7

cod. 76540000

support for motor-side bracket 1:7

cod. 76520000

stop ring

for axle Ø50
cod. 76750000

axle Ø50

for motor-side bracket 1:7, with tongue
cod. 76190000

pair of flanges Ø259.9

for tubes Ø 273 x 6.3
cod. 76420000

pair of flanges Ø231.4

for tubes Ø 244.5 x 6.3
cod. 76400000

pair of flanges Ø206.8

for tubes Ø 219.1 x 5.9
cod. 76380000

pair of flanges Ø182.4

for tubes Ø 193.7 x 5.4
cod. 76340000

pair of flanges Ø167.3

for tubes Ø 177.8 x 5
cod. 76320000

pair of flanges Ø158.8

for tubes Ø 168.3 x 4.5
cod. 76280000

pair of flanges Ø149.5

for tubes Ø 159 x 4.5
cod. 76260000

pair of flanges Ø124.5

for tubes Ø 133 x 4
cod. 76220000

PRB 50

safety-brake system rearmable

PRB 40

safety-brake system rearmable

motor-side bracket 1:7

cod. 76170000

motor-side bracket 1:5

cod. 76150001

wall-in support for motor-side bracket 1:7

cod. 76540000

support for motor-side bracket 1:7

cod. 76520000

Chain for manual override

per metre
cod. 76580000

Kit for chain emergency operation for all models

manual operation
cod. 76120000

wall-in support for motor-side bracket 1:5

cod. 76530000

shelf for motor-side bracket 1:5

cod. 76510000

stop ring

for axle Ø40
cod. 76740000

stop ring

for axle Ø50
cod. 76750000

axle Ø40

for motor-side bracket 1:5, with tongue
cod. 76180000

axle Ø50

for motor-side bracket 1:7, with tongue
cod. 76190000

manual override kit with crank

manual override from outside
cod. 76100000

pair of flanges Ø259.9

for tubes Ø 273 x 6.3
cod. 76420000

pair of flanges Ø231.4

for tubes Ø 244.5 x 6.3
cod. 76400000

pair of flanges Ø206.8

for tubes Ø 219.1 x 5.9
cod. 76380000

pair of flanges Ø182.4

for tubes Ø 193.7 x 5.4
cod. 76340000

pair of flanges Ø167.3

for tubes Ø 177.8 x 5
cod. 76320000

pair of flanges Ø158.8

for tubes Ø 168.3 x 4.5
cod. 76280000

pair of flanges Ø149.5

for tubes Ø 159 x 4.5
cod. 76260000

pair of flanges Ø124.5

for tubes Ø 133 x 4
cod. 76220000

manual override kit with handle

(bar excluded)
cod. 76110000

Merak

command board for speed control
available in 4 versions

Rak 01

pushbutton for Merak (3 buttons)
cod. 77010000

Rak 02

control device for Merak
cod. 77020000

Cable CAN BUS

1 m
cod. 19207080

photocells wall shielded

photo 360
cod. 93780000

aerial for receiver

433.9 MHz
cod. 93610000

flashing light

wall-mounted
cod. 93740000

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

switch panel

for indoor, wall-mounted
cod. 77160000

Selective

key selector
cod. 77760000

Raindrop

for outdoors
cod. 77180000

metal encased push button

without brake release
cod. 77240000

built in safe

without brake release
cod. 77310000

Sensitive

safety contactor
cod. 77940000
