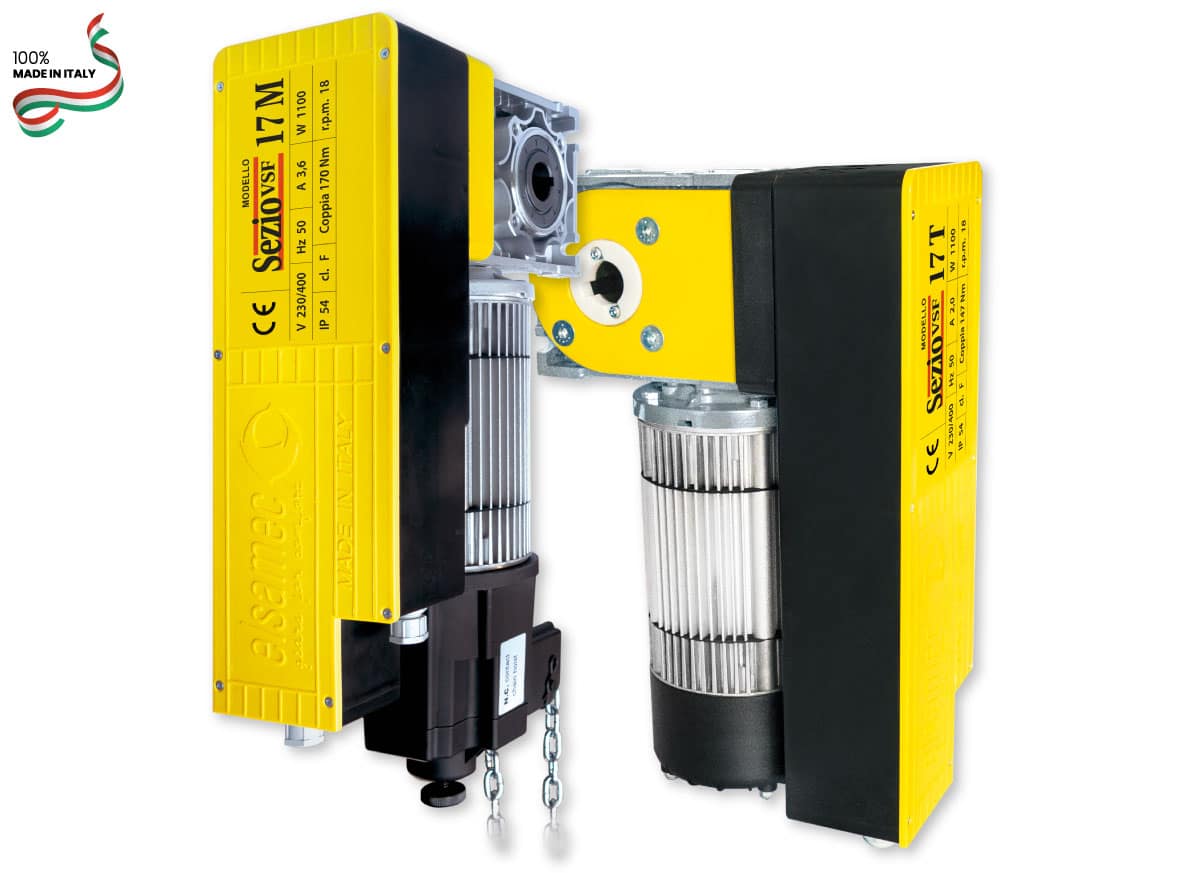

Versions
single-phase 230V with Acrux AB inverter control unit
| Code | A | B | C | D |
|---|---|---|---|---|
| 74790002 | ✔ | ✔ | ||
| 74790003 | ✔ | ✔ | ||
| 74790006 | ✔ | ✔ | ||
| 74790007 | ✔ | ✔ |
A: mechanical limit switch
B: electronic limit switch
C: emergency operation with hand crank
D: emergency operation with hand chain
three-phase 400V with Meteor AB control unit
| Code | A | B | C | D |
|---|---|---|---|---|
| 74750002 | ✔ | ✔ | ||
| 74750003 | ✔ | ✔ | ||
| 74750006 | ✔ | ✔ | ||
| 74750007 | ✔ | ✔ |
A: mechanical limit switch
B: electronic limit switch
C: emergency operation with hand crank
D: emergency operation with hand chain
three-phase 230V without control unit
| Code | A | B | C | D |
|---|---|---|---|---|
| 74760017 | ✔ | ✔ | ||
| 74770017 | ✔ | ✔ | ||
| 74760037 | ✔ | ✔ | ||
| 74770037 | ✔ | ✔ |
A: mechanical limit switch
B: electronic limit switch
C: emergency operation with hand crank
D: emergency operation with hand chain
three-phase 400V without control unit
| Code | A | B | C | D |
|---|---|---|---|---|
| 74760018 | ✔ | ✔ | ||
| 74770018 | ✔ | ✔ | ||
| 74760038 | ✔ | ✔ | ||
| 74770038 | ✔ | ✔ |
A: mechanical limit switch
B: electronic limit switch
C: emergency operation with hand crank
D: emergency operation with hand chain
Features
Emergency operation always-engaged with crank (patented system)
Possibility of not counterbalancing the sectional door with springs up to 95 Nm
Shaft speed at 18 round per minute
For intensive use sectional industrial doors up to 276 kg
Mechanical and electronic limit switch
Automatic and deadman control, with dry contact switches, integrated in the board
The on-board control panels provide power supply and control logic for photocells and/or 12 Vdc barriers.
Technical data
Emergency operation with hand crank
Emergency operation with hand chain
Mechanical limit switch with safety microswitches
Finecorsa elettronico KOSTAL o ad encoder multigiro assoluto
| Power supply |
1~230 V
3~400 V
|
| Output torque on motor | 4,1 Nm |
| Output torque on shaft | 170 Nm |
| Max lift capacity | 276 Kg |
| Frequency | 50/60 Hz |
| Consumption |
3,6 A
2 A
|
| Power | 1100 W |
| Protection Category | IP 54 |
| Output speed on motor | 1400 RPM |
| Output speed on shaft | 18 RPM |
| Ø Installation shaft | 25,4 mm (1”) |
