with mechanical limit switch and ACRUX LINK cod. 74960000

with digital limit switch and ACRUX LINK cod. 74970000
to be combined with Merak Digital cod. 79260004

RELIABILITY, SAFETY AND MADE IN ITALY QUALITY

OPTIMISATION OF WAREHOUSE SPACE

A more efficient warehouse management thanks to the range of lifting capacity and a limited number of models and accessories available.

VARYING ROLLING UP SPEEDS

An easier programming process of all functions in order to fulfil every requirement of our customers.

EASY TO INSTALL, USE AND SERVICE

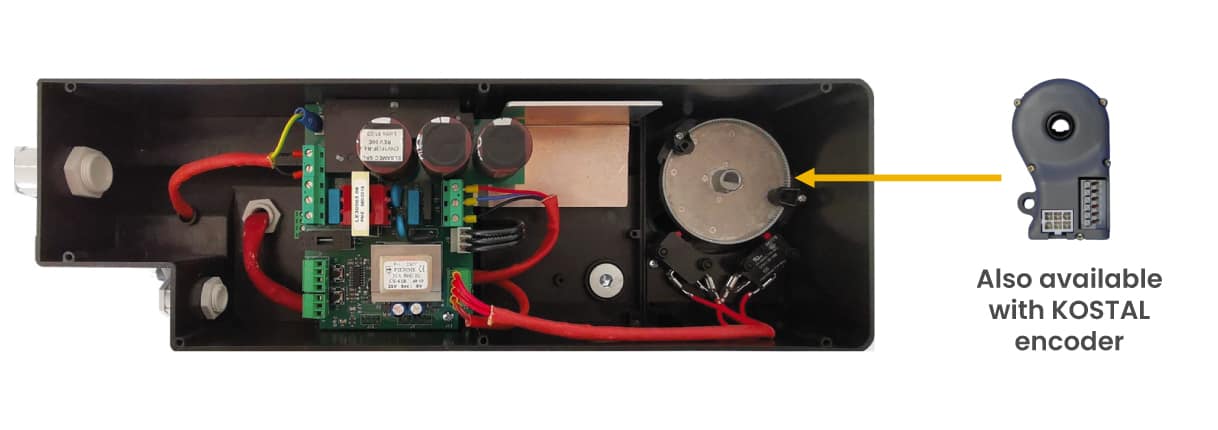

Our on-board power electronics (Acrux) is already wired and it is connected to the command board (Merak) via one single cable (CAN BUS). Therefore, the electrical connection is faster and possible mistakes are avoided.

single-phase

torque (Nm)

lifting capacity with a tube Ø of 120 mm (kg)

output rotation speed (rpm)

linear speed with a tube Ø of 120 mm (m/s)

65

108

93

0,58

output speed adjustable by the limit switch (n°)

frequency (Hz)

voltage (V)

power consumption (kW)

10

50

230

1,7

initial power absorption (A)

power absorption operatively (A)

% services (s)

max. cycles per hour (n°)

12

7,6

540

80

torque (Nm)

45

lifting capacity with a tube Ø of 120 mm (kg)

75

output rotation speed (rpm)

140

linear speed with a tube Ø of 120 mm (m/s)

0,88

output speed adjustable by the limit switch (n°)

10

frequency (Hz)

50

voltage (V)

230

power consumption (kW)

1,7

initial power absorption (A)

12

power absorption operatively (A)

7,6

% services (s)

360

max. cycles per hour (n°)

120

spindle for emergency operation

cod. 76110004

mounting bracket Staffa

cod. 74720000

mounting bracket omega

cod. 74710000

shelf for safety brake systems

cod. 76820000

Merak

command board for speed control
available in 4 versions

Rak 01

pushbutton for Merak (3 buttons)
cod. 77010000

Rak 02

control device for Merak
cod. 77020000

Cable CAN BUS

1 m
cod. 19207080

photocells wall shielded

photo 360
cod. 93780000

aerial for receiver

433.9 MHz
cod. 93610000

flashing light

wall-mounted
cod. 93740000

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

PRB SPEEDY

safety brake system for speedy doors and fold up doors

switch panel

for indoor, wall-mounted
cod. 77160000

Selective

key selector
cod. 77760000

Raindrop

for outdoors
cod. 77180000

built in safe

with brake release
cod. 77320000
