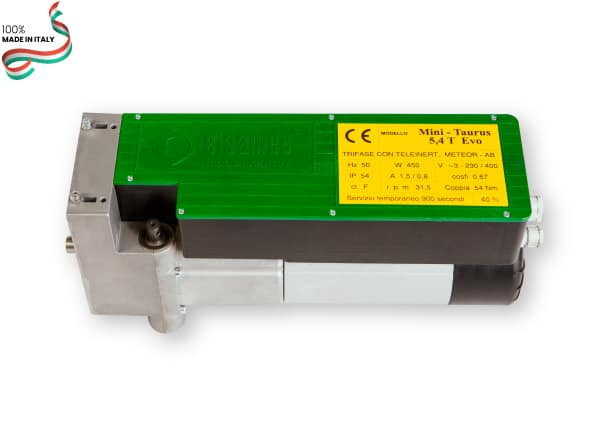

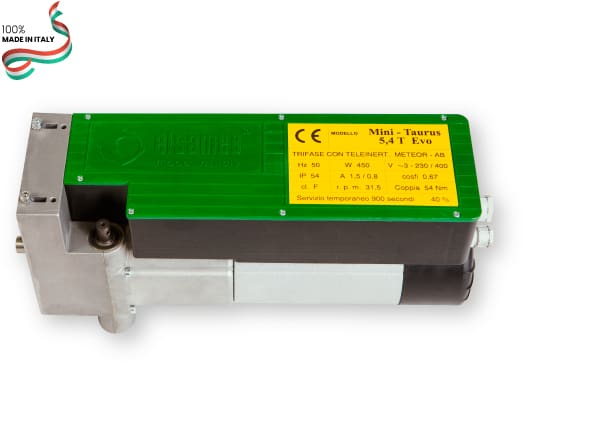

Taurus

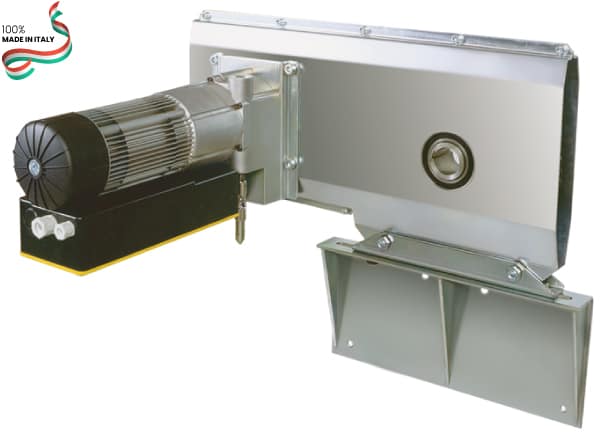

motor-side bracket, 1:4 transmission gear ratio
match support or shelf for motor-side bracket in relation to the chosen transmission ratio
connection for axle with tongue to be combined with a pair of flanges according to the tube Ø

This series is a result of long-term experience in the production of the motors Taurus, it was designed for the automation of residential and medium-industrial unbalanced rolling shutterswith intensive use. This new system definitely revolves problems related to the installation and replacement of the springs and the spring boxes, which are not more needed. It saves time and money.

The main characteristics and advantages of the motor Taurus are the smaller area occupied by the motor in the system and the simplicity of its installation and maintenance.

for INTENSIVE USE

can be installed also in tight spaces: easy access for maintenance

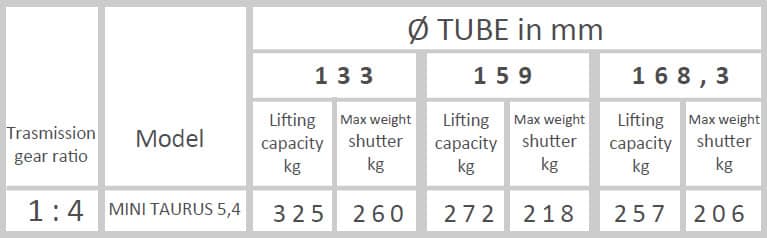

for shutters up to 260 Kg

three-phase

power (W)

450

amperage (A)

1,5/0,8

voltage (V)

~3 230/400

frequency (Hz)

50

RPM

31,5

tube rotation speed ratio 1:4 (RPM)

7,9

output torque (Nm)

54

final torque (Nm)

216

power (W)

amperage (A)

voltage (V)

frequency (Hz)

450

1,5/0,8

~3 230/400

50

RPM

tube rotation speed ratio 1:4 (RPM)

output torque (Nm)

final torque (Nm)

31,5

7,9

54

216

motor-side bracket 1:4

cod. 76840000

shelf for motor-side bracket 1:4

cod. 76810000

axle Ø25,4

for motor-side bracket 1:4, with tongue
cod. 76850000

stop ring

for axle Ø30
cod. 76730000

manual override kit with crank

manual override from outside
cod. 76100000

manual override kit with handle

(bar excluded)
cod. 76110000

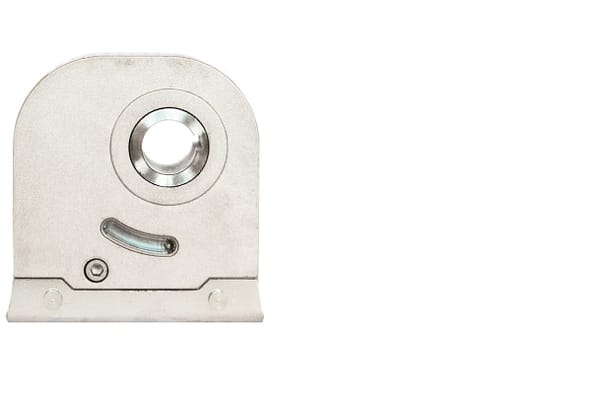

PRB 30

safety-brake system rearmable

interface module

cod. 79230000

Mini Progress LED

control unit for remote control
cod. 79140012

Meteor plus

three-phase low voltage command
cod. 79220000

photocells

wall-mounted
cod. 93770000

aerial for receiver

433.9 MHz
cod. 93610000

flashing light

wall-mounted
cod. 93740000

RX-MON

detachable receiving card
cod. 93410000

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

switch panel

for indoor, wall-mounted
cod. 77160000

Selective

key selector
cod. 77760000

Raindrop

for outdoors
cod. 77180000

metal encased push button

without brake release
cod. 77240000

built in safe

without brake release
cod. 77310000

Sensitive

safety contactor
cod. 77940000
