expandable flange
extremely accurate regulation of limit switch
expandable flange
extremely accurate regulation of limit switch

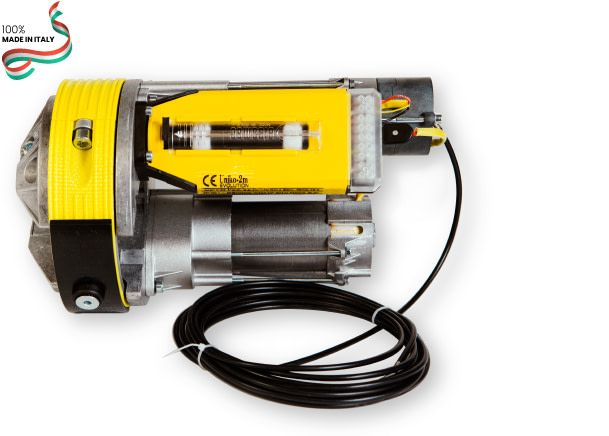

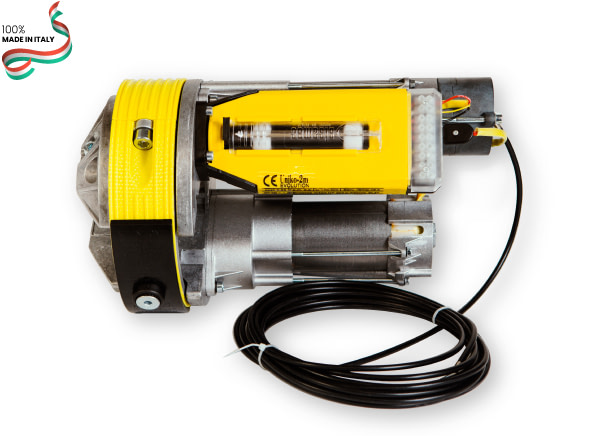

electrobrake

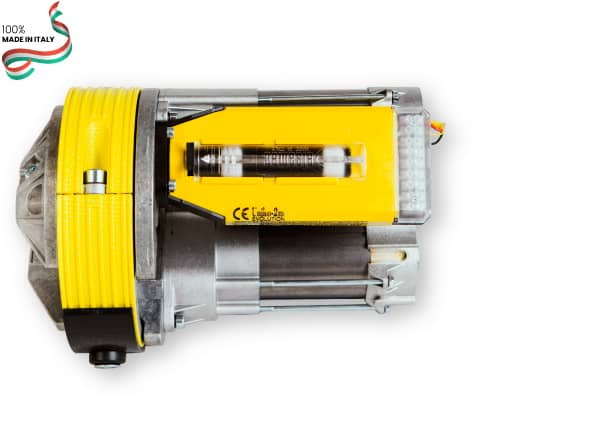

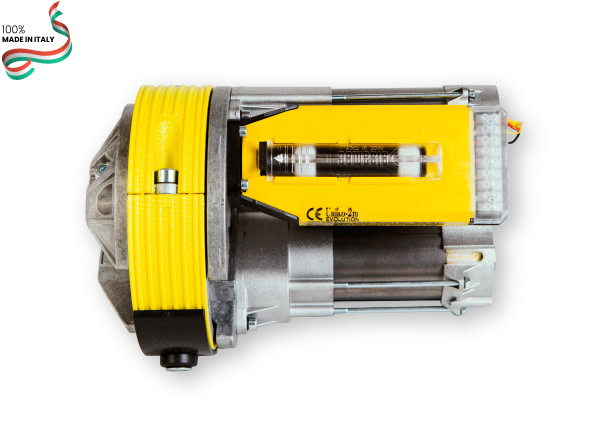

This series can be defined as a phenomenon of adaptability to all roller shutters balanced with compensation springs, thanks to a continues improvement of the functional characteristics of the motors and their innovative design. We produce two versions of the motor ES 76 EVOLUTION: the single-head and the double-head model.
great range and extremely accurate regulation of the limit switch
adjustment of the limit switch with semiautomatic system

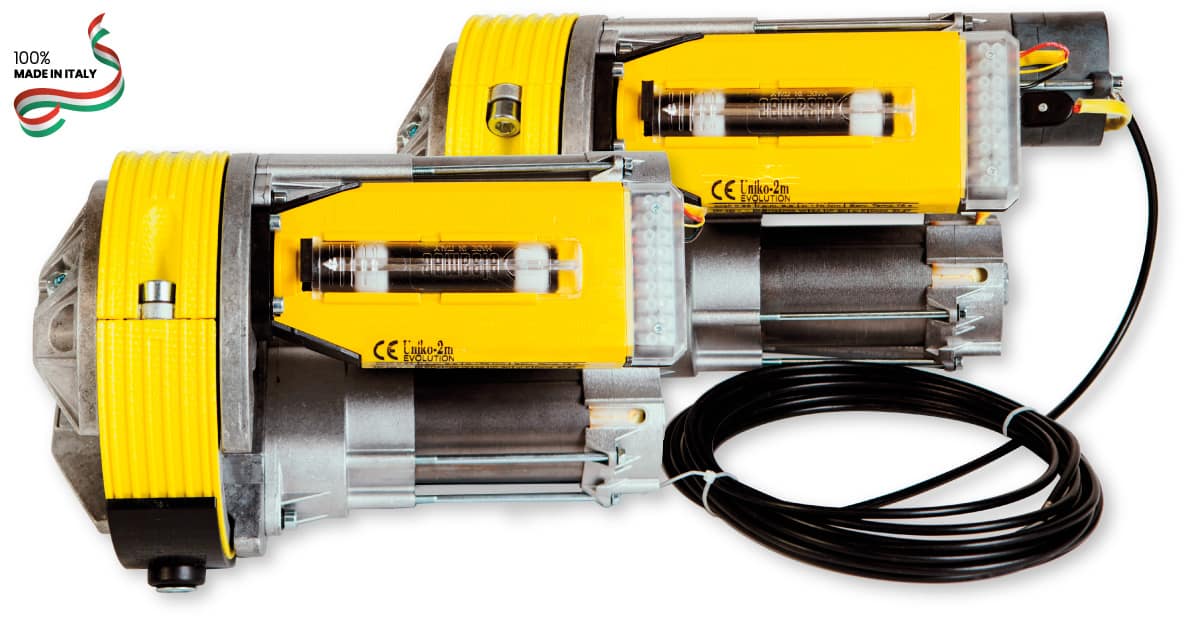

2 motors
Ø winding flange (mm)
200/220**
Ø tube rolling shutter (mm)
42*/48*/60
voltage (V)
230
R.P.M.
9
lifting capacity (kg)
240
output torque (Nm)
239
amperage (A)
3
power (W)
700
Ø winding flange (mm)
Ø tube rolling shutter (mm)
lifting capacity (kg)
amperage (A)
200/220**
42*/48*/60
240
3
voltage (V)
R.P.M.
output torque (Nm)
power (W)
230
9
239
700
* with tube adaptor | ** with flange adaptor
