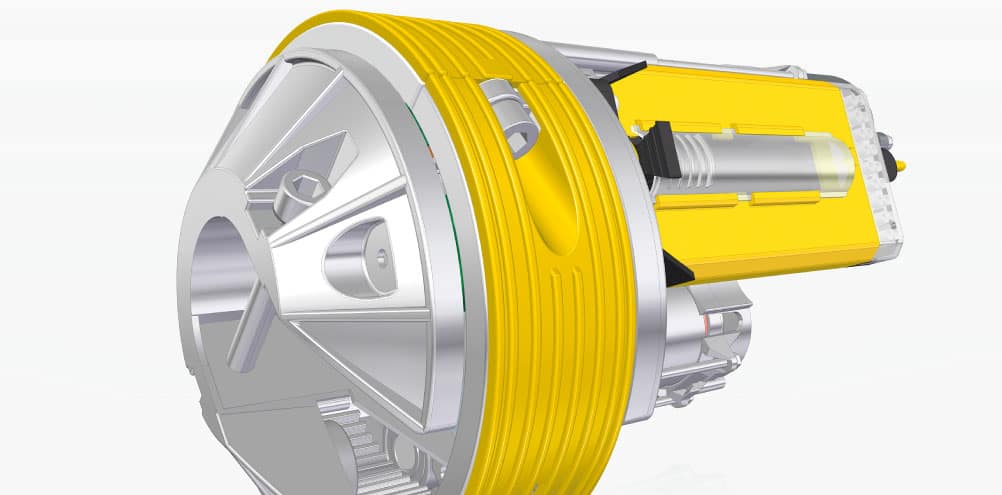

expandable flange

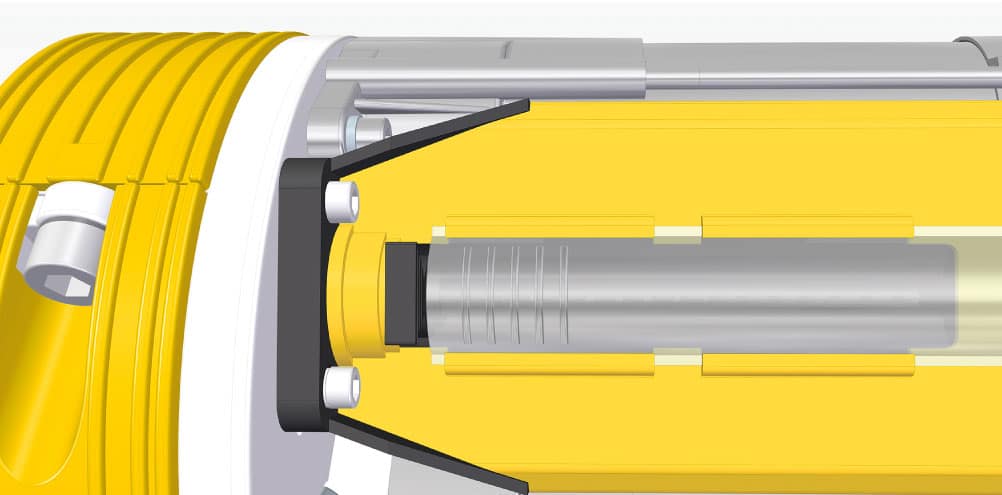

extremely accurate regulation of limit switch
expandable flange
extremely accurate regulation of limit switch

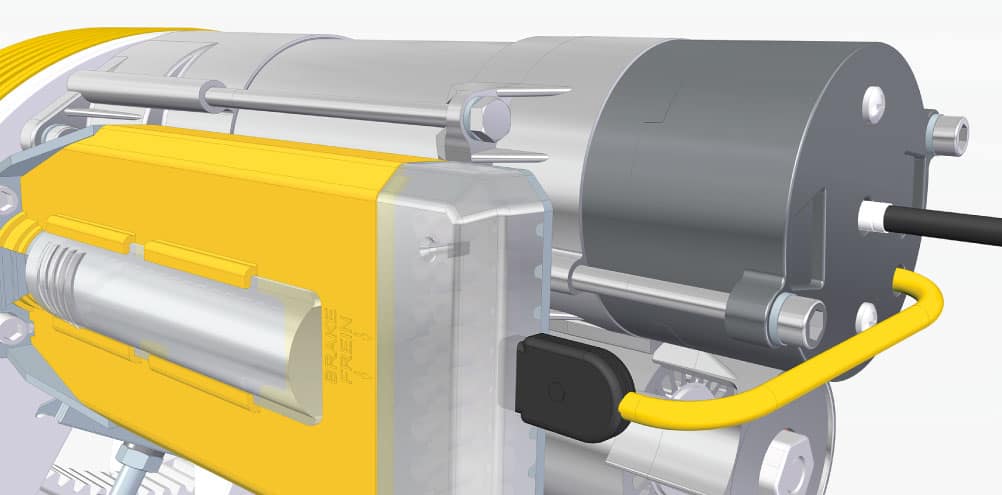

electrobrake

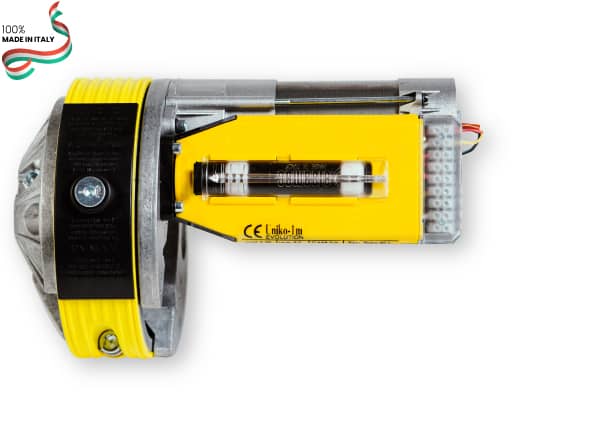

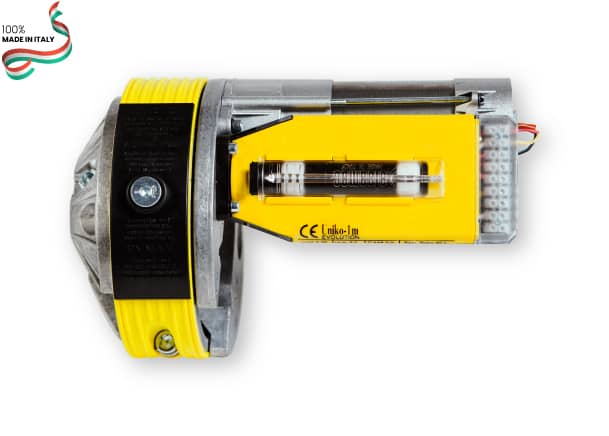

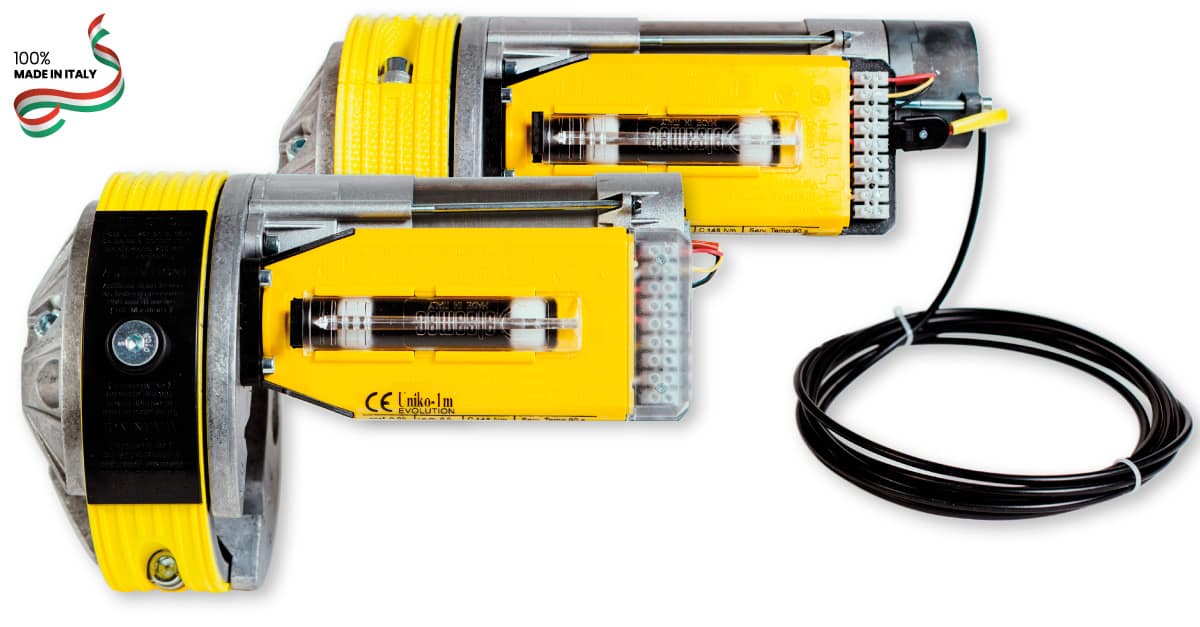

This series can be defined as a phenomenon of adaptability to all roller shutters balanced with compensation springs, thanks to a continues improvement of the functional characteristics of the motors and their innovative design. We produce two versions of the motor ES 76 EVOLUTION: the single-head and the double-head model.

great range and extremely accurate regulation of the limit switch

adjustment of the limit switch with semiautomatic system

1 motor

Ø winding flange (mm)

200/220**

Ø tube rolling shutter (mm)

42*/48*/60

voltage (V)

230

R.P.M.

9

lifting capacity (kg)

180

output torque (Nm)

177

amperage (A)

2

power (W)

450

Ø winding flange (mm)

Ø tube rolling shutter (mm)

lifting capacity (kg)

amperage (A)

200/220**

42*/48*/60

180

2

voltage (V)

R.P.M.

output torque (Nm)

power (W)

230

9

177

450

* with tube adaptor | ** with flange adaptor

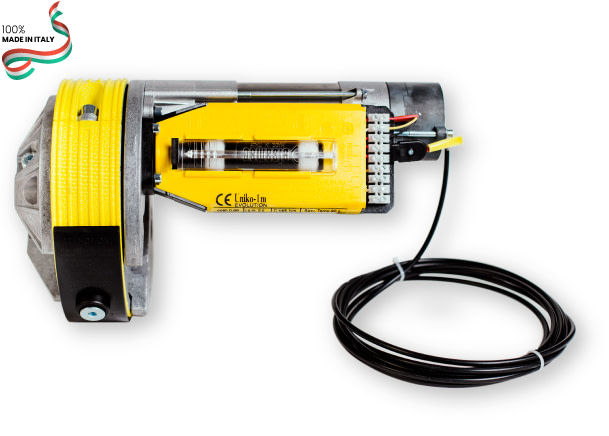

electrobrake

brake cable 4 m
cod. 75130000

brake release handle

cod. 75360000

tube adaptor Uniko Ø48

tube adaptor from Ø 60 mm to Ø 48 mm
cod. 75260000

tube adaptor Uniko Ø42

tube adaptor from Ø 60 mm to Ø 42 mm
cod. 75250000

kit flange adaptor Uniko from Ø 200mm to Ø 220mm

from Ø200 mm to Ø220 mm
cod. 75270000

kit flange adaptor Uniko Ø206

from Ø200 mm to Ø206 mm
cod. 75290000

Unik block

safety-brake system for Uniko series
cod. 78110000

Mini Progress LED

control unit for remote control
cod. 79140012

Polaris

low voltage control
cod. 93350000

photocells wall shielded

photo 360
cod. 93780000

aerial for receiver

433.9 MHz
cod. 93610000

flashing light

wall-mounted
cod. 93740000

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

switch panel

for indoor, wall-mounted
cod. 77160000

Selective

key selector
cod. 77760000

brake release kit for key-switch Selective

cod. 77800000

Raindrop

for outdoors
cod. 77180000

metal encased push button

with brake release
cod. 77250000

metal encased push button

without brake release
cod. 77240000

built in safe

with brake release
cod. 77320000

built in safe

without brake release
cod. 77310000

frame

cod. 77330000

caseback

cod. 77340000

brake release kit

cod. 77350000

release Kit

with cable and sheath
cod. 77370000

Sensitive

safety contactor
cod. 77940000

Uniko 1M EVO

Raindrop

for outdoors
cod. 77180000

Mini Progress LED

control unit for remote control
cod. 79140012

Mizar

couple of two-channel trasmitter 433,9MHz
cod. 79020000

electrobrake

brake cable 4 m
cod. 75130000

brake release handle

cod. 75360000

tube adaptor Uniko Ø48

tube adaptor from Ø 60 mm to Ø 48 mm
cod. 75260000

kit flange adaptor Uniko from Ø 200mm to Ø 220mm

from Ø200 mm to Ø220 mm
cod. 75270000

Uniko 1M EVO

Raindrop

for outdoors
cod. 77180000

Mini Progress LED

control unit for remote control
cod. 79140012

photocells wall shielded

photo 360
cod. 93780000

flashing light

wall-mounted
cod. 93740000

Mizar

couple of two-channel trasmitter 433,9MHz
cod. 79020000

electrobrake

brake cable 4 m
cod. 75130000

brake release handle

cod. 75360000

tube adaptor Uniko Ø48

tube adaptor from Ø 60 mm to Ø 48 mm
cod. 75260000

kit flange adaptor Uniko from Ø 200mm to Ø 220mm

from Ø200 mm to Ø220 mm
cod. 75270000
