Taurus
motor-side bracket gear ratio 1:7 Magnum
match support or shelf for motor-side bracket in relation to the chosen transmission ratio
connection for axle with tongue to be combined with a pair of flanges according to the tube Ø
safety-brake systems PRB
shelf
Taurus
motor-side bracket
wall-in for support motor-side bracket

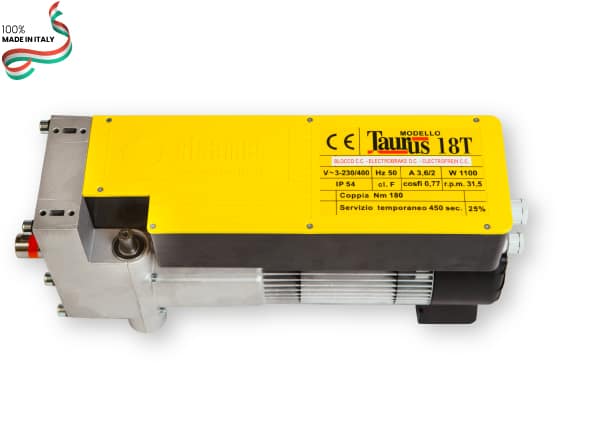

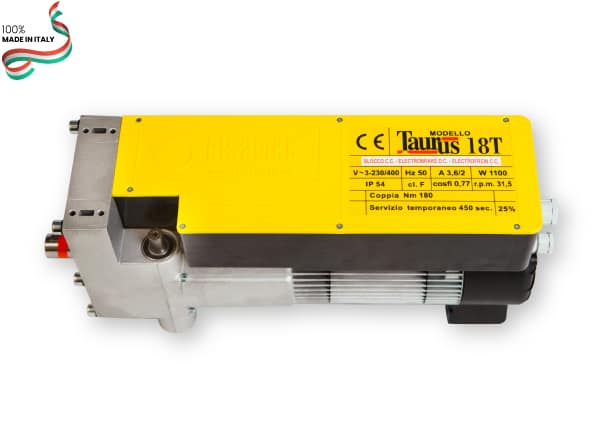

TAURUS 18-M side-motor with THREE-PHASED 230/400V supply for industrial NON-INTENSIVE use. The output torque of 180Nm develops into 1.260Nm using the specific side-gear 1:7 Magnum, and allows automation of shutters of great dimensions and weights. Supplied with METEOR AB EVO command on board.
This series of motors was born as a response on the growing demand of side-motors for unbalanced roller shutters of big weight and dimensions.
The main characteristics and advantages of the motor Taurus are the smaller area occupied by the motor in the system and the simplicity of its installation and maintenance.
The system Taurus is reliable, secure and versatile thanks to a complete range of the accessories available. The Manual Override of TAURUS gives the advantage of being inserted at all times; in case of emergency manoeuvring by hand, the override does not need to be geared (patented system), yet it does not interfere during normal functioning.
lifting capacity up to 1520 Kg
can be installed also in tight spaces: easy access for maintenance
tube rotation speed up to 4.5 RPM
three-phase
power (W)
1100
amperage (A)
3,6/2
voltage (V)
~3 230/400
frequency (Hz)
50
RPM
47,7
tube rotation speed ratio 1:5 (RPM)
–
tube rotation speed ratio 1:7 (RPM)
4,5
output torque (Nm)
180
power (W)
amperage (A)
voltage (V)
frequency (Hz)
1100
3,6/2
~3 230/400
50
RPM
tube rotation speed ratio 1:5 (RPM)
tube rotation speed ratio 1:7 (RPM)
output torque (Nm)
47,7
–
4,5
180
