VERSIONS
230V cod. 74240000
400V cod. 74250000

Taurus
motor-side bracket available in gear ratios 1:5 / 1:7
match support or shelf for motor-side bracket in relation to the chosen transmission ratio
connection for axle with tongue to be combined with a pair of flanges according to the tube Ø

VERSIONS
230V cod. 74240000
400V cod. 74250000

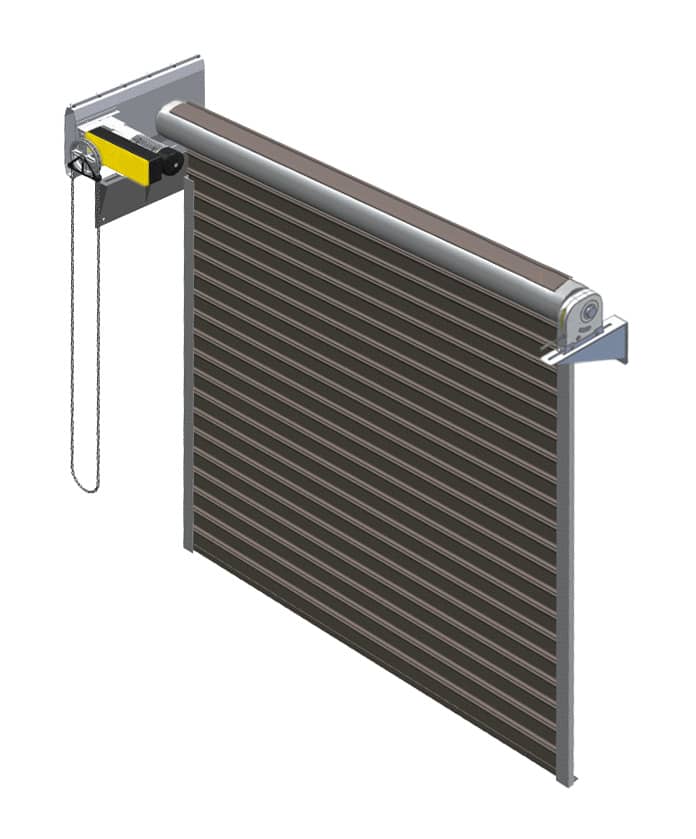

safety-brake systems PRB

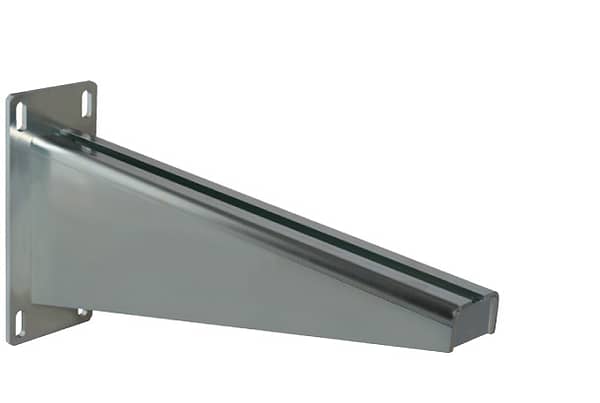

shelf
Taurus
motor-side bracket
wall-in for support motor-side bracket

VERSIONS
230V cod. 74240000
400V cod. 74250000

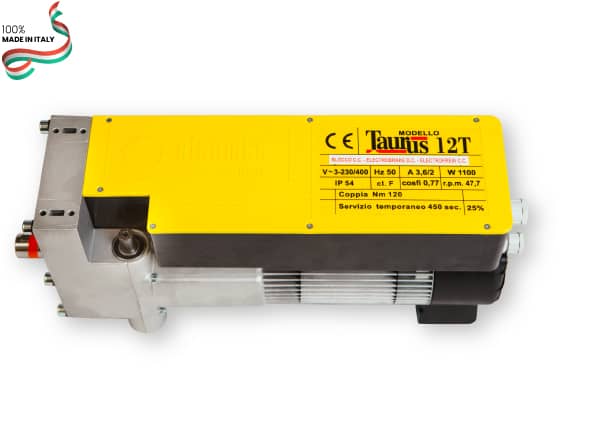

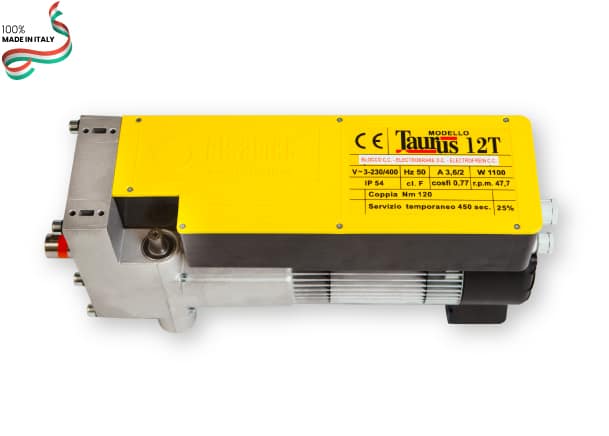

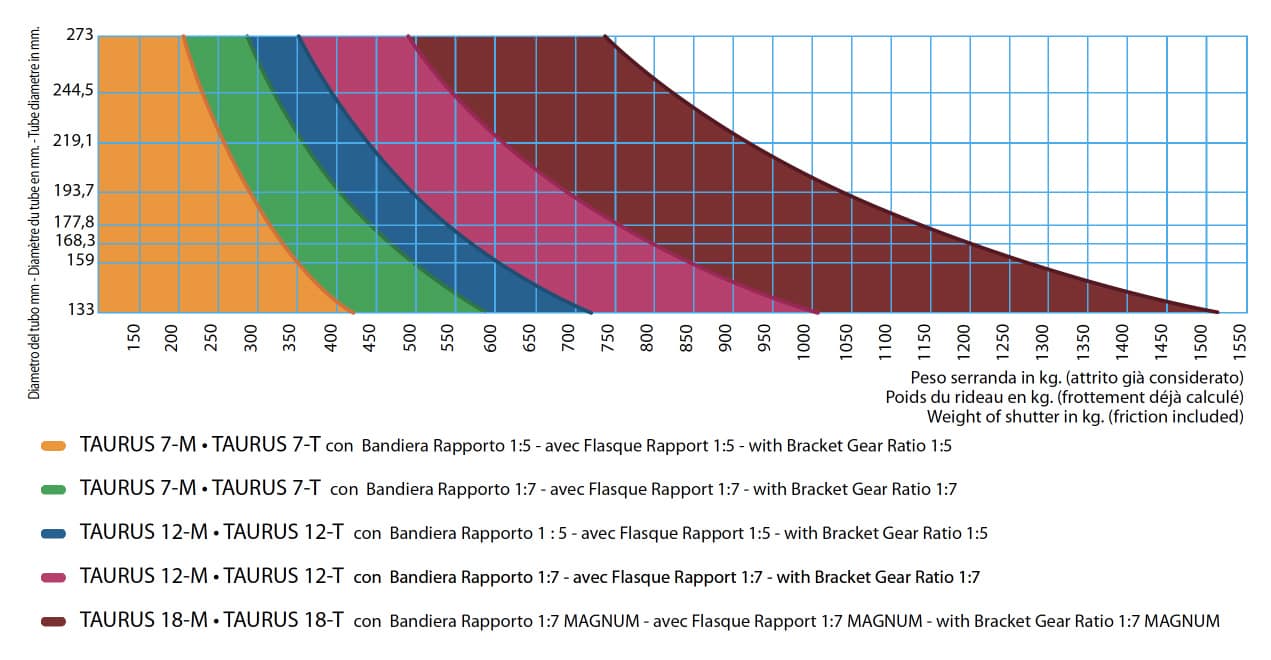

TAURUS 12-T side motor conceived for industrial use, with THREE-PHASED 230/400V supply with NON INTENSIVE USE, with on-board METEOR AB EVO command. The torque is 120 Nm, corresponding, depending on the side-flange and diameter of shaft used, to a range of lifting capacity up to 1.000 kg of curtain weight.

This series of motors was born as a response on the growing demand of side-motors for unbalanced roller shutters of big weight and dimensions.

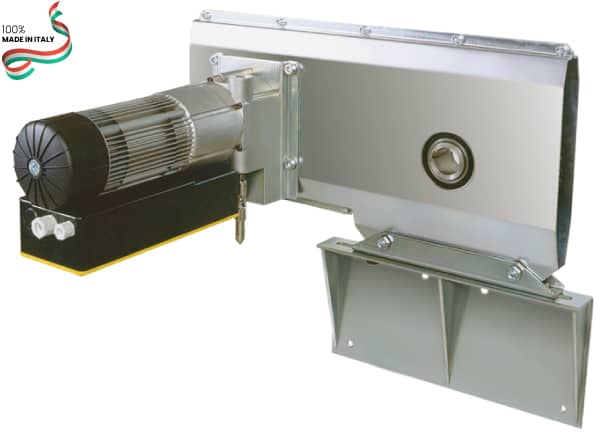

The main characteristics and advantages of the motor Taurus are the smaller area occupied by the motor in the system and the simplicity of its installation and maintenance.

The system Taurus is reliable, secure and versatile thanks to a complete range of the accessories available. The Manual Override of TAURUS gives the advantage of being inserted at all times; in case of emergency manoeuvring by hand, the override does not need to be geared (patented system), yet it does not interfere during normal functioning.

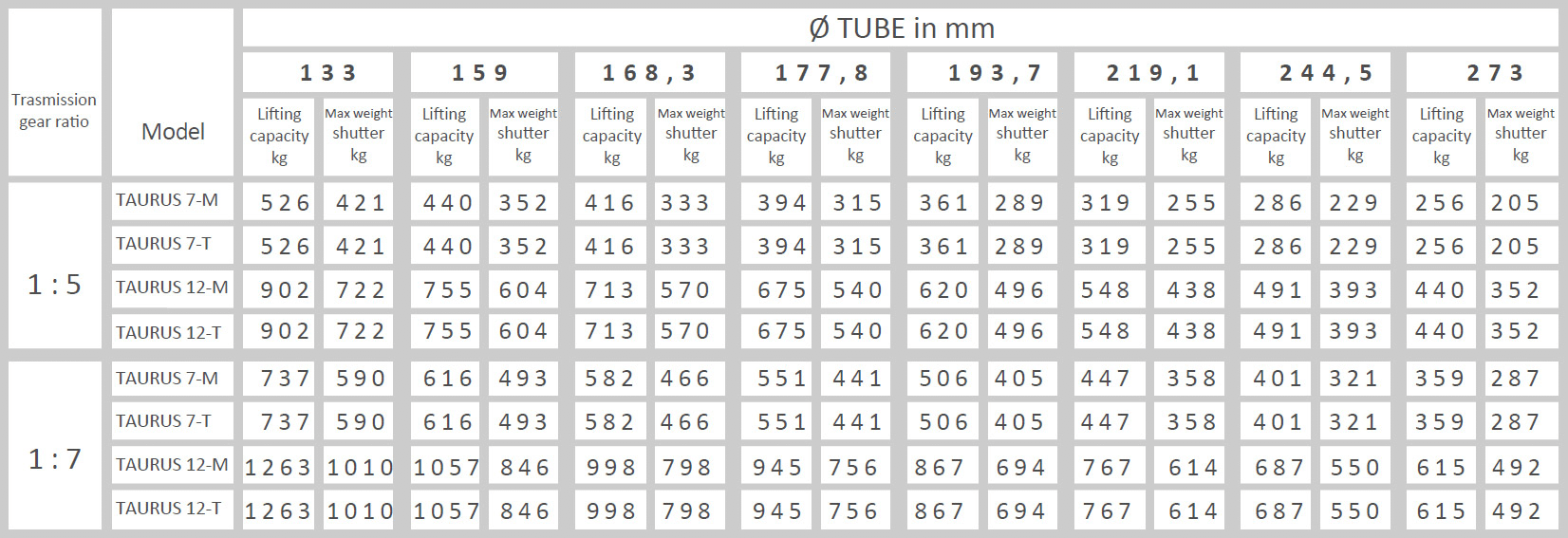

lifting capacityup to 1000 Kg

can be installed also in tight spaces: easy access for maintenance

tube rotation speedup to 9.5 RPM

three-phase

power (W)

1100

amperage (A)

3,6/2

voltage (V)

~3 230/400

frequency (Hz)

50

RPM

47,7

tube rotation speed ratio 1:5 (RPM)

9,5

tube rotation speed ratio 1:7 (RPM)

6,7

output torque (Nm)

120

power (W)

amperage (A)

voltage (V)

frequency (Hz)

1100

3,6/2

~3 230/400

50

RPM

tube rotation speed ratio 1:5 (RPM)

tube rotation speed ratio 1:7 (RPM)

output torque (Nm)

47,7

9,5

6,7

120

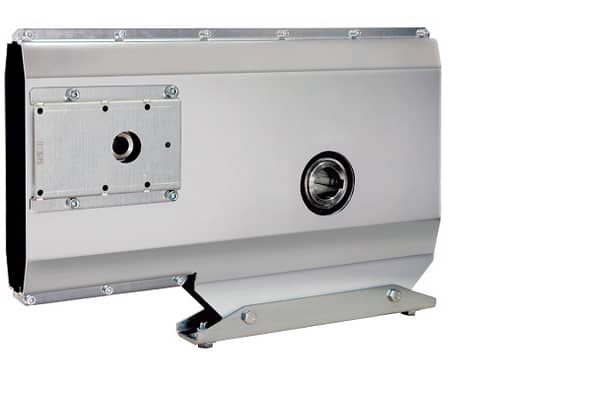

motor-side bracket 1:5

cod. 76150001

wall-in support for motor-side bracket 1:5

cod. 76530000

shelf for motor-side bracket 1:5

cod. 76510000

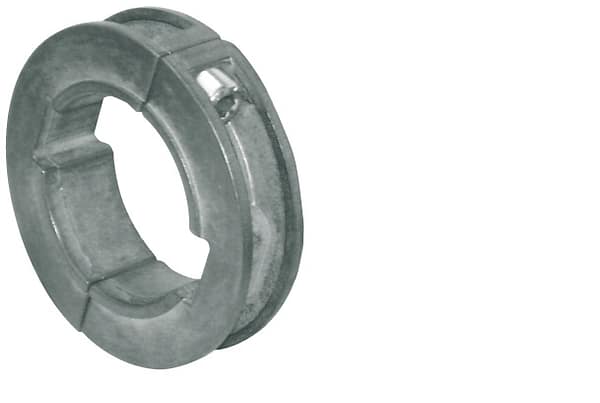

stop ring

for axle Ø40
cod. 76740000

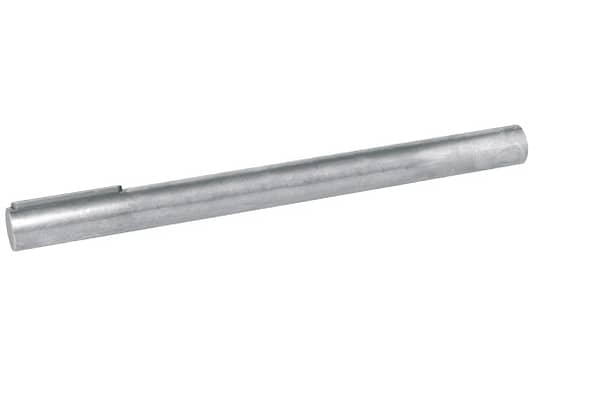

axle Ø40

for motor-side bracket 1:5, with tongue
cod. 76180000

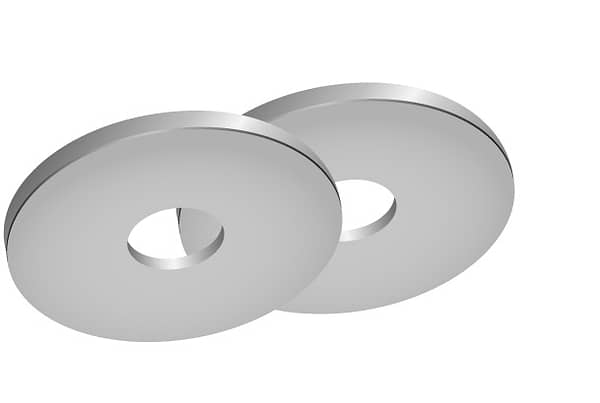

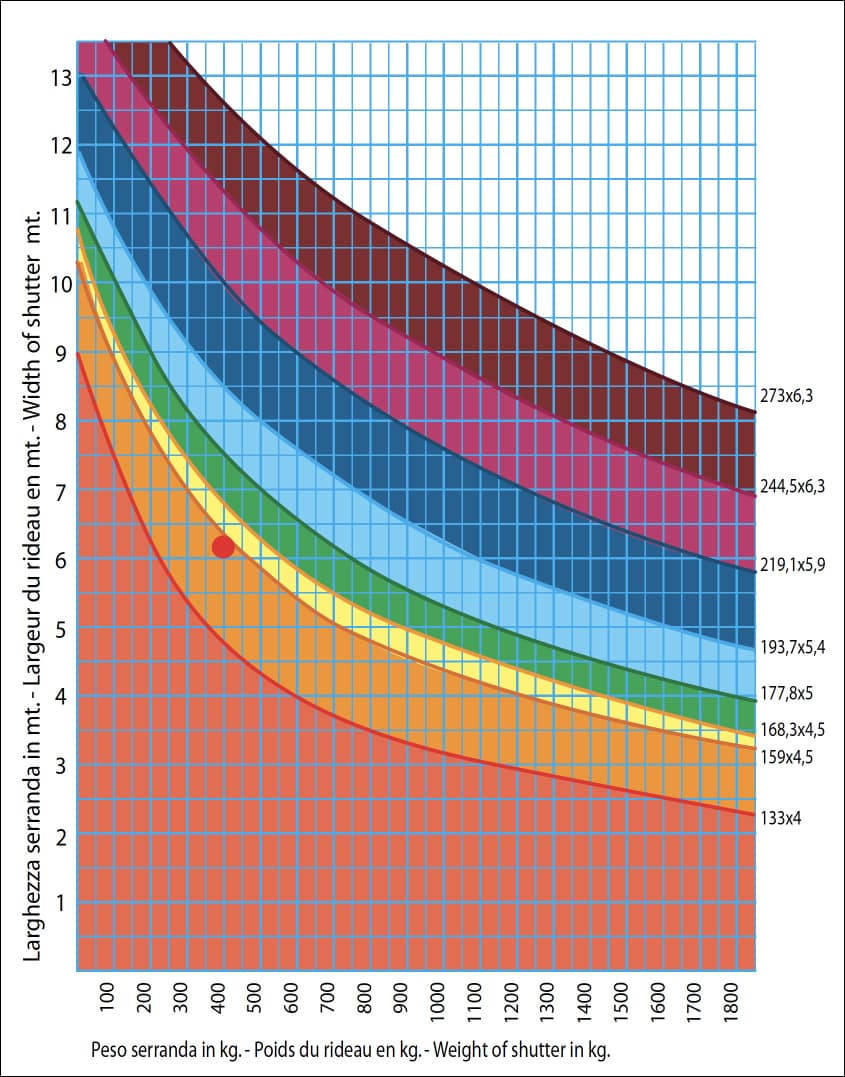

pair of flanges Ø259.9

for tubes Ø 273 x 6.3
cod. 76420000

pair of flanges Ø231.4

for tubes Ø 244.5 x 6.3
cod. 76400000

pair of flanges Ø206.8

for tubes Ø 219.1 x 5.9
cod. 76380000

pair of flanges Ø182.4

for tubes Ø 193.7 x 5.4
cod. 76340000

pair of flanges Ø167.3

for tubes Ø 177.8 x 5
cod. 76320000

pair of flanges Ø158.8

for tubes Ø 168.3 x 4.5
cod. 76280000

pair of flanges Ø149.5

for tubes Ø 159 x 4.5
cod. 76260000

pair of flanges Ø124.5

for tubes Ø 133 x 4
cod. 76220000

motor-side bracket 1:7

cod. 76170000

wall-in support for motor-side bracket 1:7

cod. 76540000

support for motor-side bracket 1:7

cod. 76520000

stop ring

for axle Ø50
cod. 76750000

axle Ø50

for motor-side bracket 1:7, with tongue
cod. 76190000

pair of flanges Ø259.9

for tubes Ø 273 x 6.3
cod. 76420000

pair of flanges Ø231.4

for tubes Ø 244.5 x 6.3
cod. 76400000

pair of flanges Ø206.8

for tubes Ø 219.1 x 5.9
cod. 76380000

pair of flanges Ø182.4

for tubes Ø 193.7 x 5.4
cod. 76340000

pair of flanges Ø167.3

for tubes Ø 177.8 x 5
cod. 76320000

pair of flanges Ø158.8

for tubes Ø 168.3 x 4.5
cod. 76280000

pair of flanges Ø149.5

for tubes Ø 159 x 4.5
cod. 76260000

pair of flanges Ø124.5

for tubes Ø 133 x 4
cod. 76220000

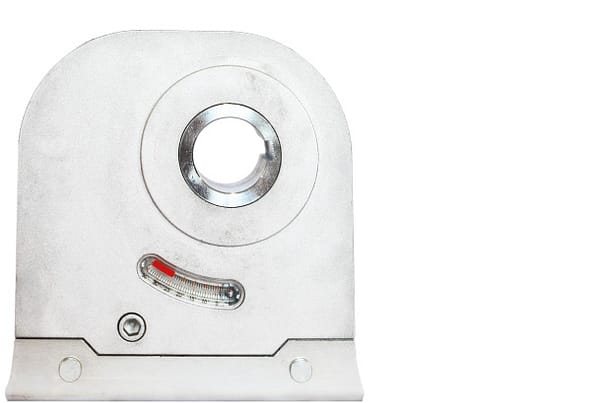

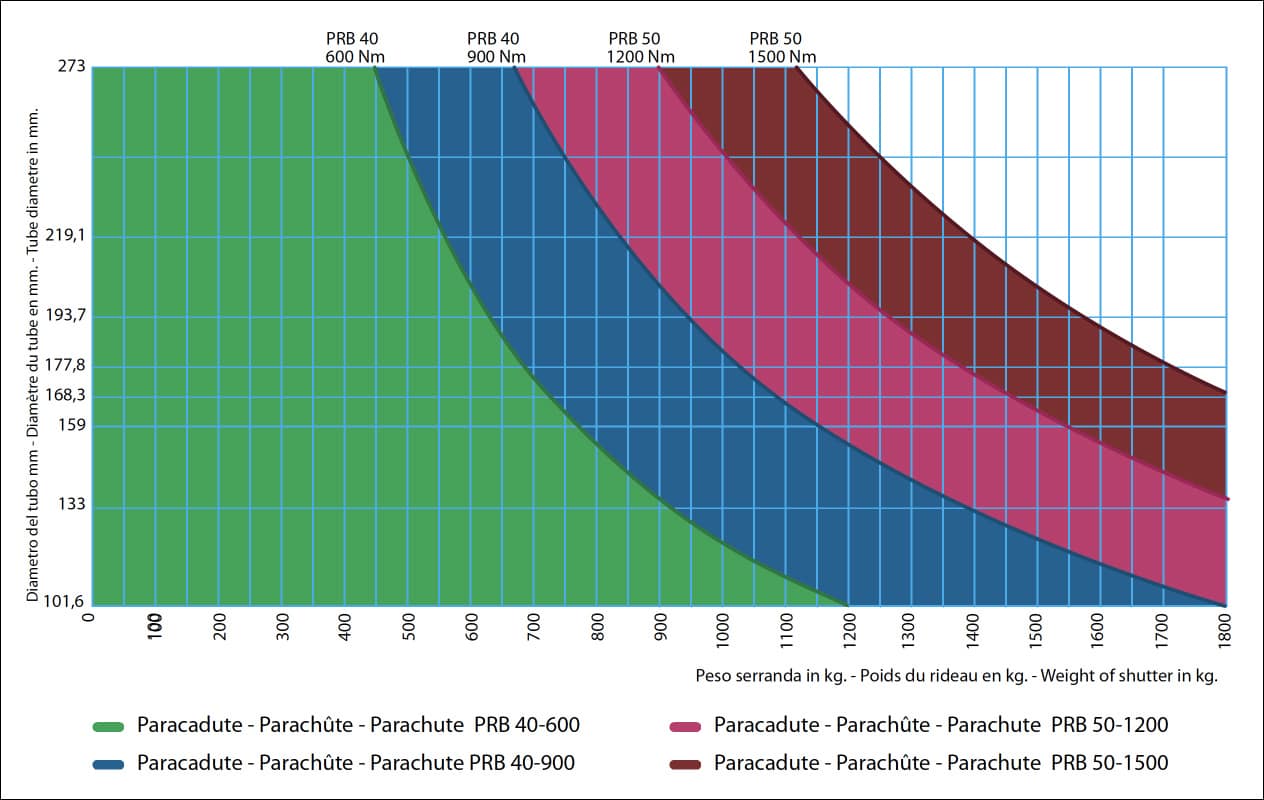

PRB 50

safety-brake system rearmable

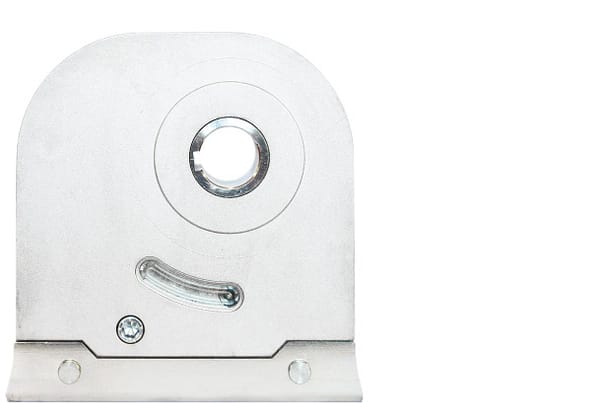

PRB 40

safety-brake system rearmable

motor-side bracket 1:7

cod. 76170000

motor-side bracket 1:5

cod. 76150001

wall-in support for motor-side bracket 1:7

cod. 76540000

support for motor-side bracket 1:7

cod. 76520000

Chain for manual override

per metre
cod. 76580000

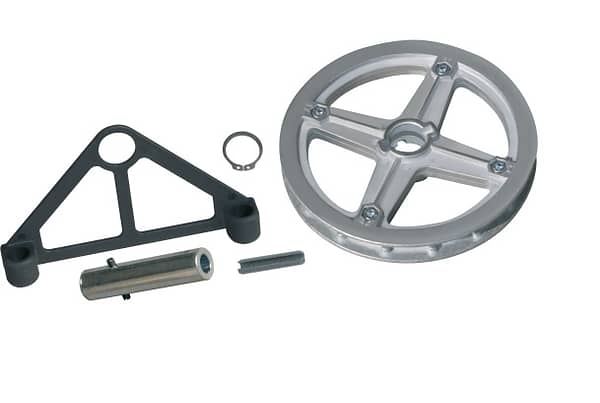

Kit for chain emergency operation for all models

manual operation
cod. 76120000

wall-in support for motor-side bracket 1:5

cod. 76530000

shelf for motor-side bracket 1:5

cod. 76510000

stop ring

for axle Ø40
cod. 76740000

stop ring

for axle Ø50
cod. 76750000

axle Ø40

for motor-side bracket 1:5, with tongue
cod. 76180000

axle Ø50

for motor-side bracket 1:7, with tongue
cod. 76190000

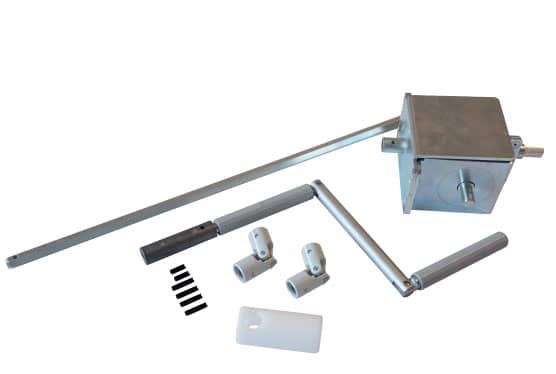

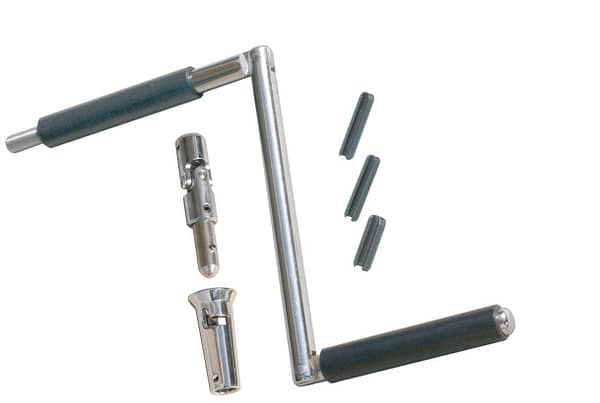

manual override kit with crank

manual override from outside
cod. 76100000

pair of flanges Ø259.9

for tubes Ø 273 x 6.3
cod. 76420000

pair of flanges Ø231.4

for tubes Ø 244.5 x 6.3
cod. 76400000

pair of flanges Ø206.8

for tubes Ø 219.1 x 5.9
cod. 76380000

pair of flanges Ø182.4

for tubes Ø 193.7 x 5.4
cod. 76340000

pair of flanges Ø167.3

for tubes Ø 177.8 x 5
cod. 76320000

pair of flanges Ø158.8

for tubes Ø 168.3 x 4.5
cod. 76280000

pair of flanges Ø149.5

for tubes Ø 159 x 4.5
cod. 76260000

pair of flanges Ø124.5

for tubes Ø 133 x 4
cod. 76220000

manual override kit with handle

(bar excluded)
cod. 76110000

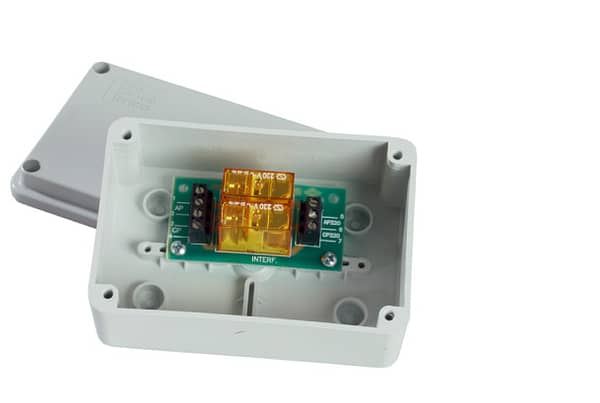

interface module

cod. 79230000

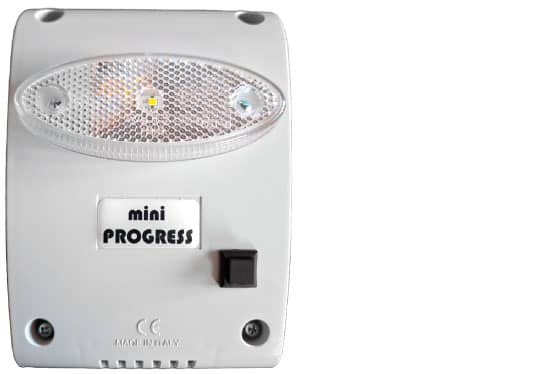

Mini Progress LED

control unit for remote control
cod. 79140012

Meteor plus

three-phase low voltage command
cod. 79220000

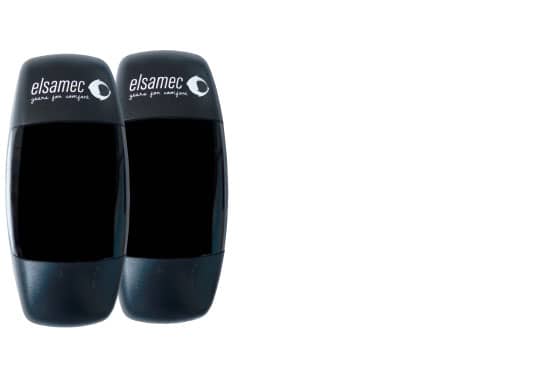

photocells

wall-mounted
cod. 93770000

aerial for receiver

433.9 MHz
cod. 93610000

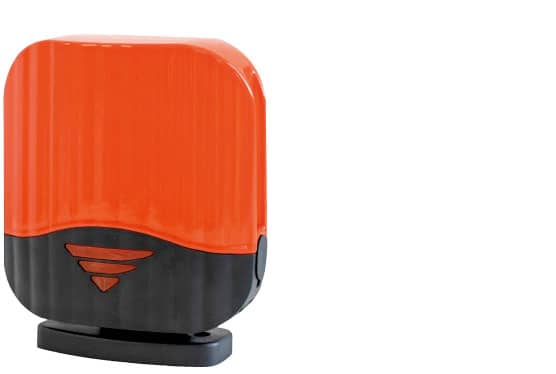

flashing light

wall-mounted
cod. 93740000

RX-MON

detachable receiving card
cod. 93410000

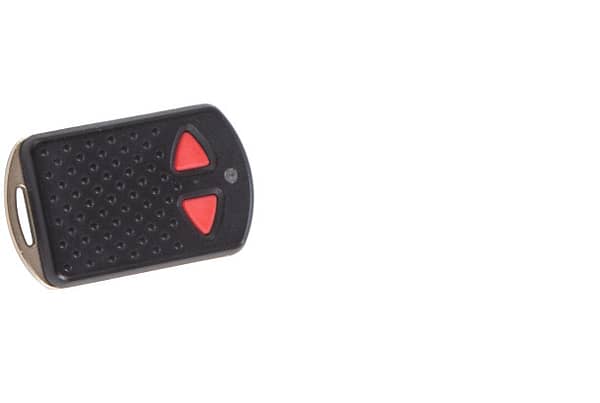

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

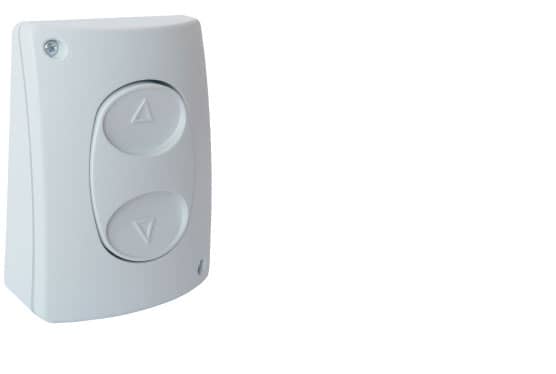

switch panel

for indoor, wall-mounted
cod. 77160000

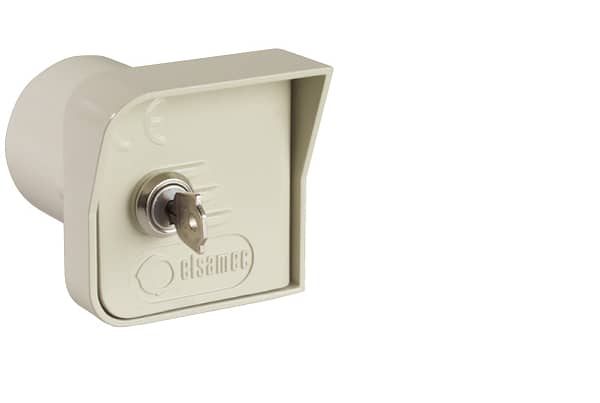

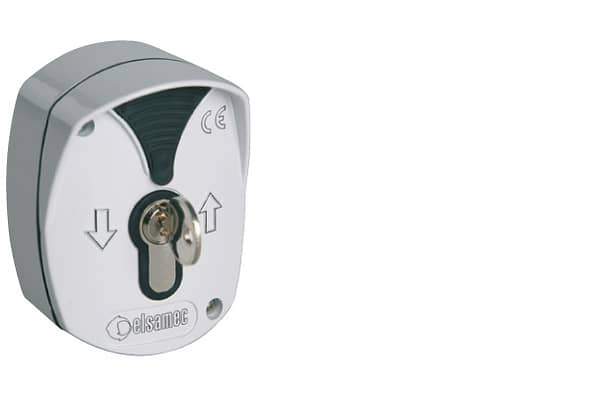

Selective

key selector
cod. 77760000

Raindrop

for outdoors
cod. 77180000

metal encased push button

without brake release
cod. 77240000

built in safe

without brake release
cod. 77310000

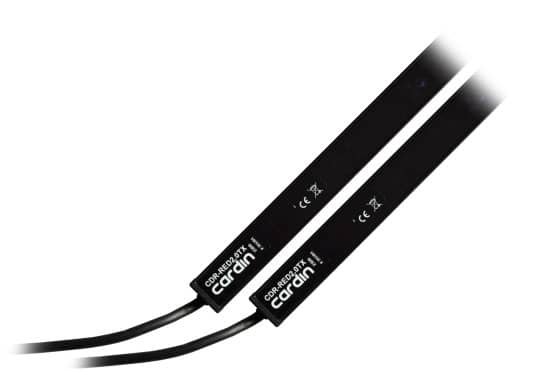

Sensitive

safety contactor
cod. 77940000
