VERSIONS
230V cod. 74220000
400V cod. 74230000

Taurus
motor-side bracket available in gear ratios 1:5 / 1:7
match support or shelf for motor-side bracket in relation to the chosen transmission ratio
connection for axle with tongue to be combined with a pair of flanges according to the tube Ø

VERSIONS
230V cod. 74220000
400V cod. 74230000

safety-brake systems PRB
shelf
Taurus
motor-side bracket
wall-in for support motor-side bracket

VERSIONS
230V cod. 74220000
400V cod. 74230000

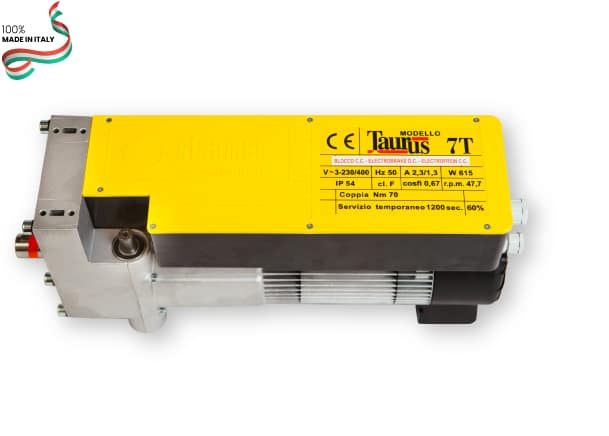

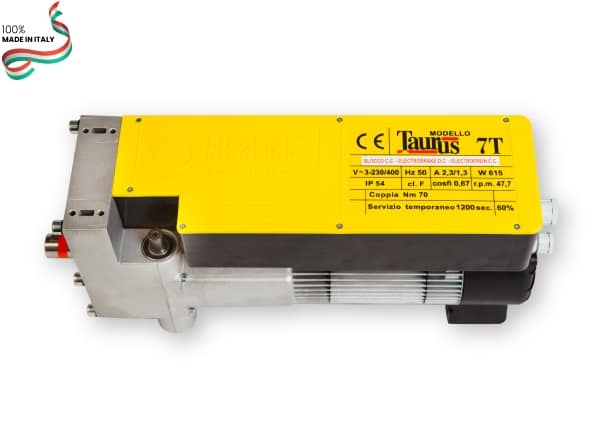

TAURUS 7-T side motor with THREE-PHASED 230/400V supply with INTENSIVE USE with service factor 60% (about 20-25 min of continuous use, depending on environmental temperature level), with on-board METEOR AB EVO command.

The torque is 70 Nm, corresponding, depending on the side-flange and diametre of shaft used, to a range of lifting capacity up to 500 kg of curtain weight.

This series of motors was born as a response on the growing demand of side-motors for unbalanced roller shutters of big weight and dimensions.

The main characteristics and advantages of the motor Taurus are the smaller area occupied by the motor in the system and the simplicity of its installation and maintenance.

The system Taurus is reliable, secure and versatile thanks to a complete range of the accessories available. The Manual Override of TAURUS gives the advantage of being inserted at all times; in case of emergency manoeuvring by hand, the override does not need to be geared (patented system), yet it does not interfere during normal functioning.

INTENSIVE USE: 25′ WITH SERVICE FACTOR 60%

can be installed also in tight spaces: easy access for maintenance

lifting capacity up to 500 Kg

three-phase

power (W)

615

amperage (A)

2,3/1,3

voltage (V)

~3 230/400

frequency (Hz)

50

RPM

47,7

tube rotation speed ratio 1:5 (RPM)

9,5

tube rotation speed ratio 1:7 (RPM)

6,7

output torque (Nm)

70

power (W)

amperage (A)

voltage (V)

frequency (Hz)

615

2,3/1,3

~3 230/400

50

RPM

tube rotation speed ratio 1:5 (RPM)

tube rotation speed ratio 1:7 (RPM)

output torque (Nm)

47,7

9,5

6,7

70

motor-side bracket 1:5

cod. 76150001

wall-in support for motor-side bracket 1:5

cod. 76530000

shelf for motor-side bracket 1:5

cod. 76510000

Shaft Ø40

for motor-side bracket 1:5, with tongue
cod. 76180000

stop ring

for axle Ø40
cod. 76740000

motor-side bracket 1:7

cod. 76170000

wall-in support for motor-side bracket 1:7

cod. 76540000

support for motor-side bracket 1:7

cod. 76520000

Shaft Ø50

for motor-side bracket 1:7, with tongue
cod. 76190000

stop ring

for axle Ø50
cod. 76750000

Couple of flanges Ø259,9 x 50

for tubes Ø 273 x 6.3
cod. 76420000

Couple of flanges Ø231,4 x 50

for tubes Ø 244.5 x 6.3
cod. 76400000

Couple of flanges Ø206,8 x 50

for tubes Ø 219.1 x 5.9
cod. 76380000

Couple of flanges Ø182,4 x 50

for tubes Ø 193.7 x 5.4
cod. 76340000

Couple of flanges Ø167,3 x 50

for tubes Ø 177.8 x 5
cod. 76320000

Couple of flanges Ø158,8 x 50

for tubes Ø 168.3 x 4.5
cod. 76280000

Couple of flanges Ø149,5 x 50

for tubes Ø 159 x 4.5
cod. 76260000

Couple of flanges Ø124,5 x 50

for tubes Ø 133 x 4
cod. 76220000

PRB 50

safety-brake system rearmable

PRB 40

safety-brake system rearmable

kit for chain operation

Manual override
code 76120000

Chain for manual override

per metre
cod. 76580000

manual override kit with handle

(bar excluded)
cod. 76110000

Manual override kit from outside

cod. 76130001

Meteor plus

three-phase low voltage command
cod. 79220022

interface module

cod. 79230000

Mini Progress LED

control unit for remote control
cod. 79140012

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

Julius

Photocells wall shielded
cod. 93790000

safety light curtains

Photoelectric sensors
cod. 93800020
cod. 93800026

flashing light


cod. 93740000

switch panel

for indoor, wall-mounted
cod. 77160000

Raindrop

for outdoors
cod. 77180000

Selective

key selector
cod. 77760000

metal encased push button

without brake release
cod. 77240000

built in safe

without brake release
cod. 77310000

Sensitive

safety contactor
cod. 77940000
